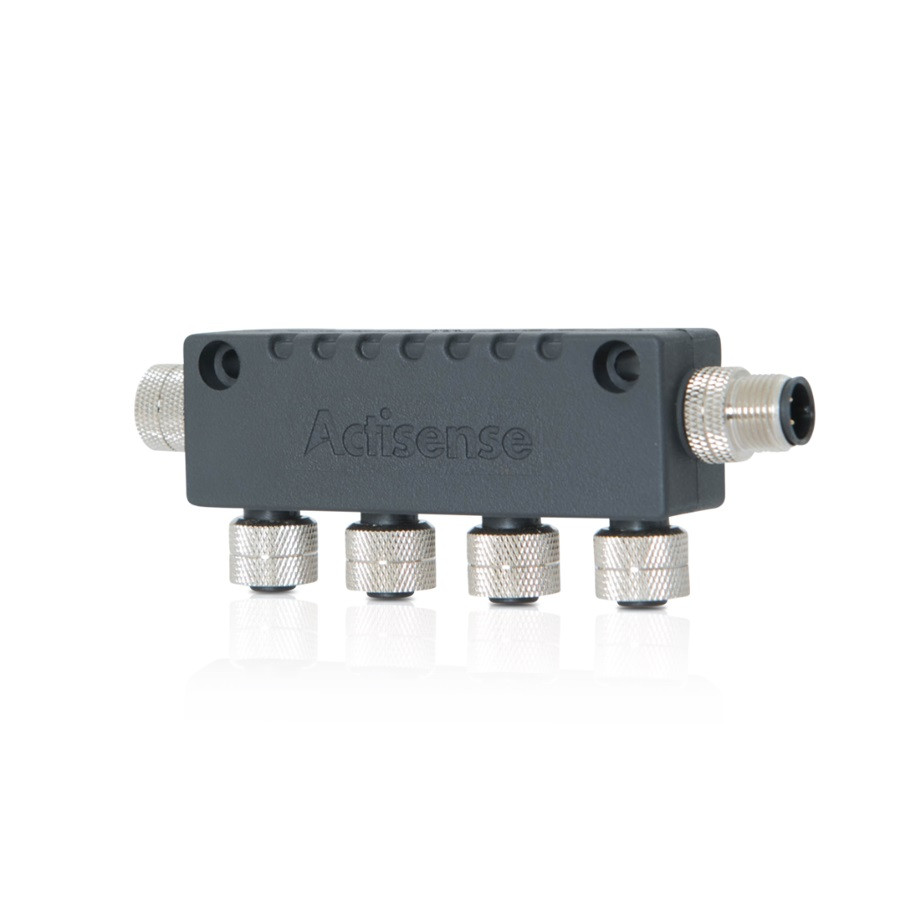

Actisense NMEA 2000® Micro 4-Way T piece
Model: A2K-4WTThe Actisense NMEA 2000® 4 Way Multidrop T Piece is for use where a multiple drop or ‘ports’ are required from the NMEA 2000® backbone to connect other devices.
With five female and one male connector, the A2K-4WT can be easily connected to Actisense NMEA 2000® micro cable assemblies, available in various lengths with UL certified cable
Specifications| Rated Current | 4A |
| Rated Voltage | 60V DC |
| Male Contact | Brass, gold plated |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PA66 (30% Glass filled), black |
| Contact Polarisation | Standard M12 -"A"- polarisation |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber, Black |
| Housing | TPU, flame retardant to UL94V-0, Halogen Free |
| Internal Housing Shield | Copper Foil |
| Weight | 105g |
