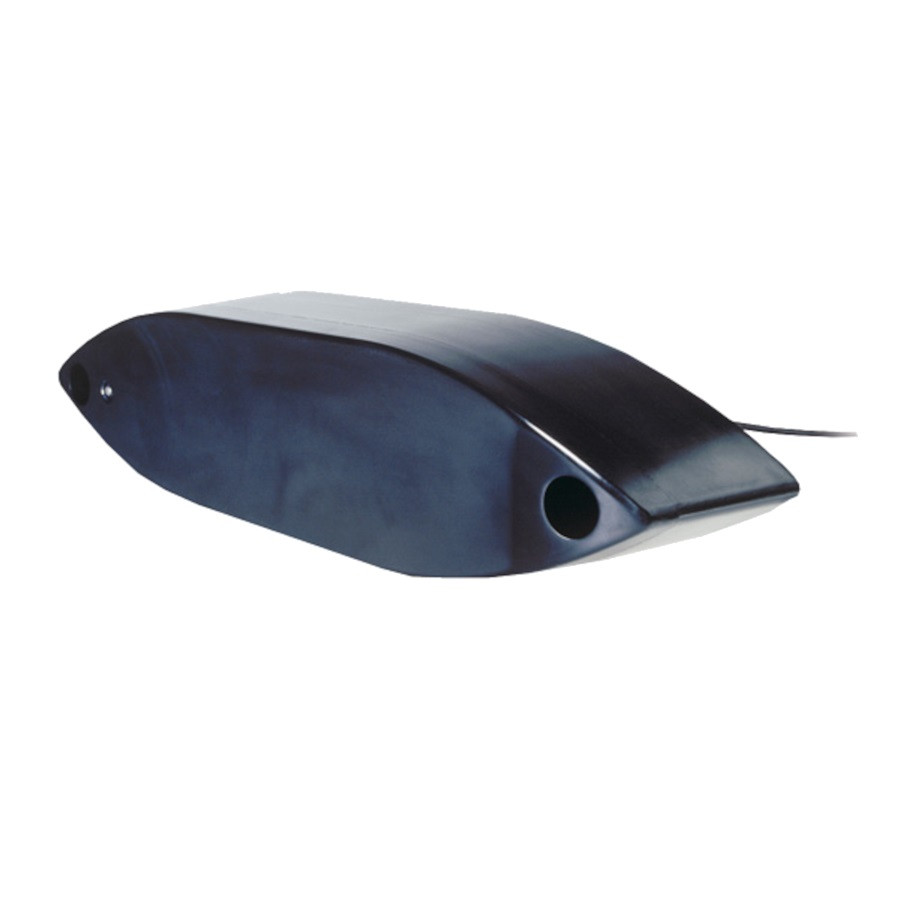

Airmar R509 Low-High Chirp, 3kW, w/FB, No Connector, DT
Model: R509C-LH- Depth and fast-response water-temperature sensing
- 2 to 3 kW of power for exceptional deep-water performance
- Low frequency: 28 to 60 kHz, 23° to 9° port-starboard beamwidth, 11° to 5° fore-aft beamwidth, Maximum depth of 3048 m (10000')
- High frequency: 130 to 210 kHz, 8° to 4° beamwidth, Maximum depth of 457 m (1500')
- 112 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- Urethane housing with fairing for optimal performance
- Patented Xducer ID® technology
The R509LH is the go-to transducer for today’s top captains who want maximum depth capability combined with the excellent target resolution of the high-frequency band. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game-fish separation at all depths. The R509LH is packed with a twenty-four element, low-frequency array that operates at anywhere between 28 and 60 kHz. The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow, 8° to 4°, beam, delivering amazing target resolution and bottom detail.
Specifications| Acoustic Window | Epoxy/urethane |
| Cable-Length | 15 m (49') |
| Connector | Bare Wire |
| Deadrise Range | Up to 25° with fairing |
| Frequency | Low-High |
| Low Frequency | 28-60 kHz |
| Low Frequency Beamwidth | 11°x23°-5°x9° |
| High Frequency | 130-210 kHz |
| High Frequency Beamwidth | 8°-4° |
| Housing Material | Urethane |
| Max Deadrise | Up to 22° |
