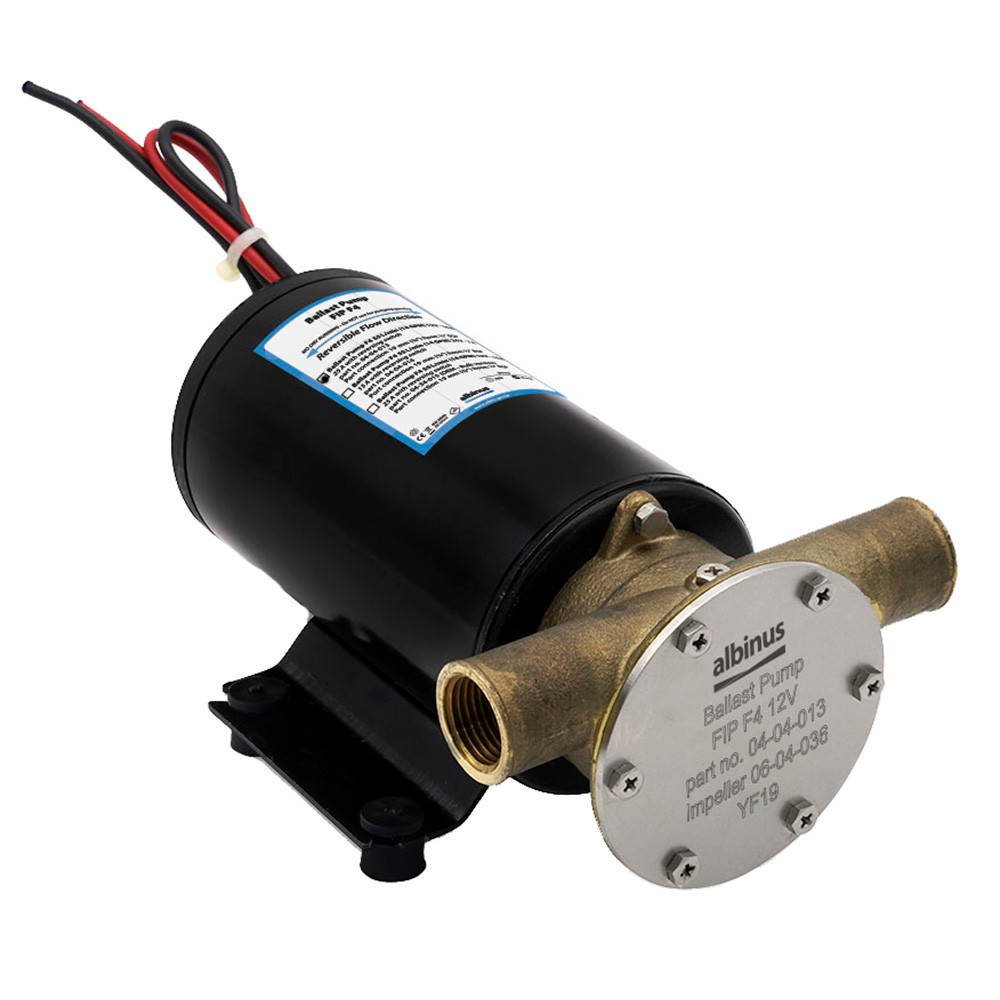

Ballast Pump FIP F4 12V
DC 12V F4-size ballast pump with a capacity of 55 L/min (14.25 GMP). This pump is used for ballast pumping of water between tanks.
Features:
- Pump body in brass, stainless steel shaft, premium ballast MC19 compound impeller, and seawater-resistant shaft seal
- Self-priming up to a 3m vertical lift
- Reversible flow direction
- 25A fuse reversing
- 16A normal duty
- Protected against ignition by surrounding flammable gases, ISO 8846
- Replacement premium ballast impeller in MC19 compound, PN 06-04-036
Specifications:
- Port Connections: 3/4 in. (19mm)
- Hose Connection: 1/2" threaded BSP
- Weight: 0,8 kg/1 Lb
- Dimensions (L x H x W) (mm/in): 180/7 x 90/3.5 x 120/4.7
- Type: Reversible flow direction by changing polarity
- Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
