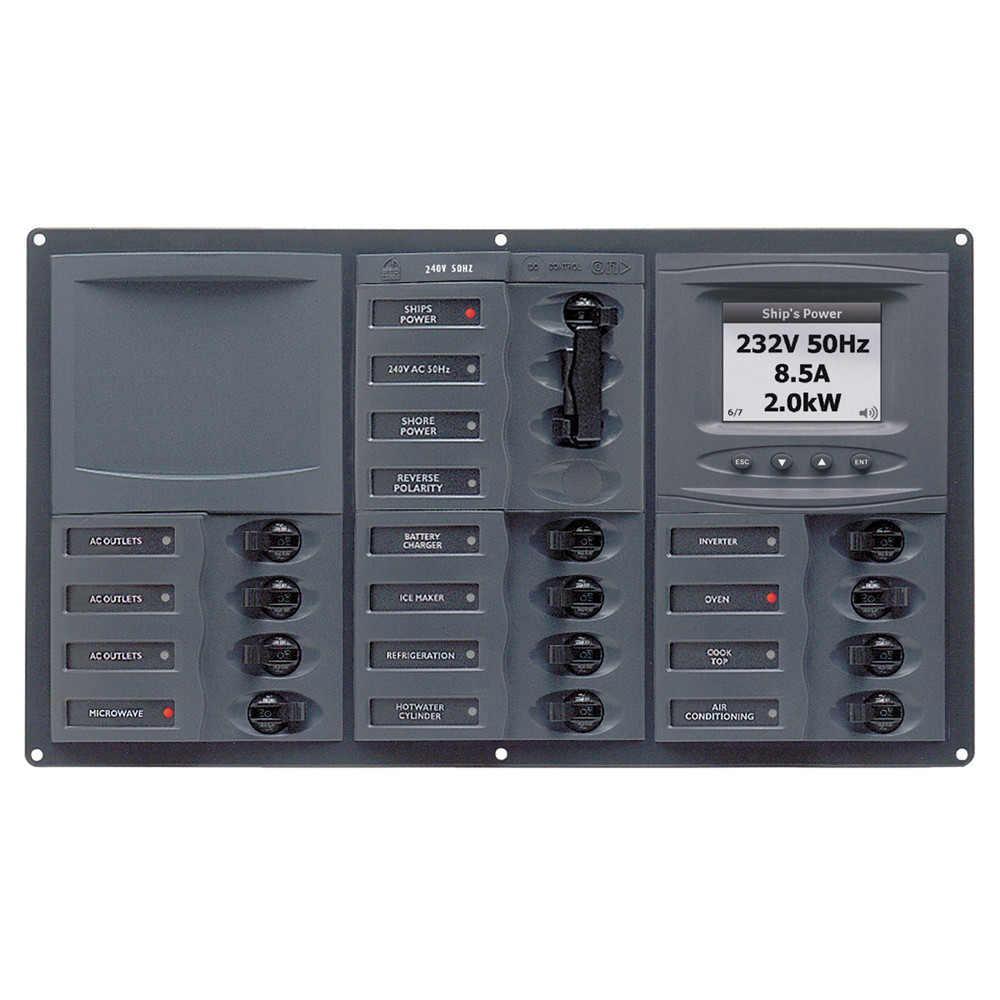

AC Circuit Breaker Panel with Digital Meters, 12SP 2DP AC230V ACSM Stainless Steel Horizontal
Features
Specifications
Features
- Supplied with tranducer
- Reverse polarity indicator
- Double pole mains input CBs with side lockout
- Digital meter shows volts, amps and frequency
- LED wired to indicate live panel with mains breaker either on or off
- AC source selector ensures no cross over between AC inputs (ship or
shore power)
Specifications
- Total Positions: 12 Loads + 2 Inputs
- Circuit Breakers: 1x 5A, 4x 10A, 5x 15A, 1x 20A, 1x 25A + 1x 20A, 1x 30A
- Nominal Voltage: 230V AC
- Maximum Amperage: 30A
- Dimensions: 7.9" X 13.9" X 2.5"
- Neg Bus: IS-6MM-2
