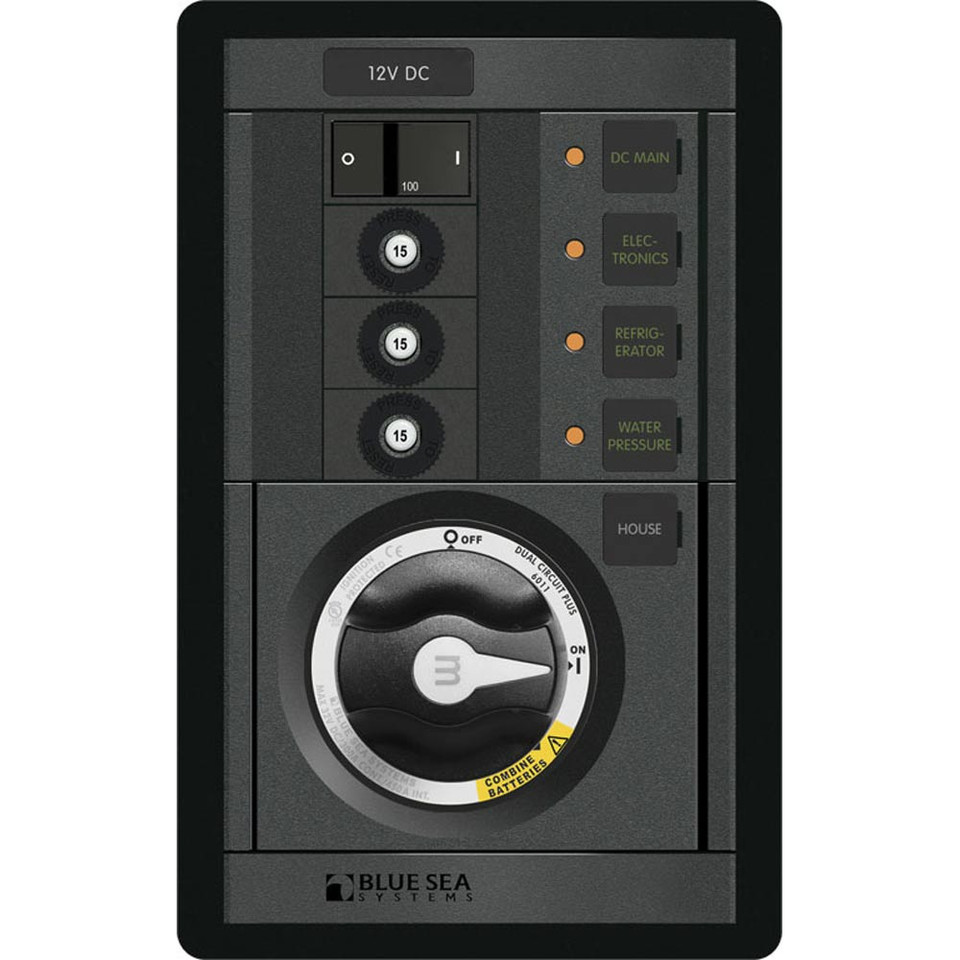

M-Series Dual Circuit Plus™, Main + 3 Positions CLB Vertical
Features:
Specifications:
Features:
- Push Button Reset-Only Branch Circuit Breakers provide economical high-density circuit protection when switching is provided elsewhere - ideal for 24-hour circuit protection
- Provides DC Main circuit protection
- Backlit label positions
- "ON" indicating LEDs installed in all circuit positions
- 24-hour circuits
- Snap on end-plates conceal mounting screws
- Labels can be removed and replaced from the front of the panel
- Incorporates M-Series Dual Circuit Plus™ Battery Switch 6011200
- Includes 4218-Square Format Label Set
Specifications:
- Positions:3
- Nominal Voltage:12V DC
- Height:7.75" (196.85mm)
- Width: 4.88" (123.95mm)
- Depth:3.50" (88.9mm)
- Weight:2.42lb (1.1kg)
