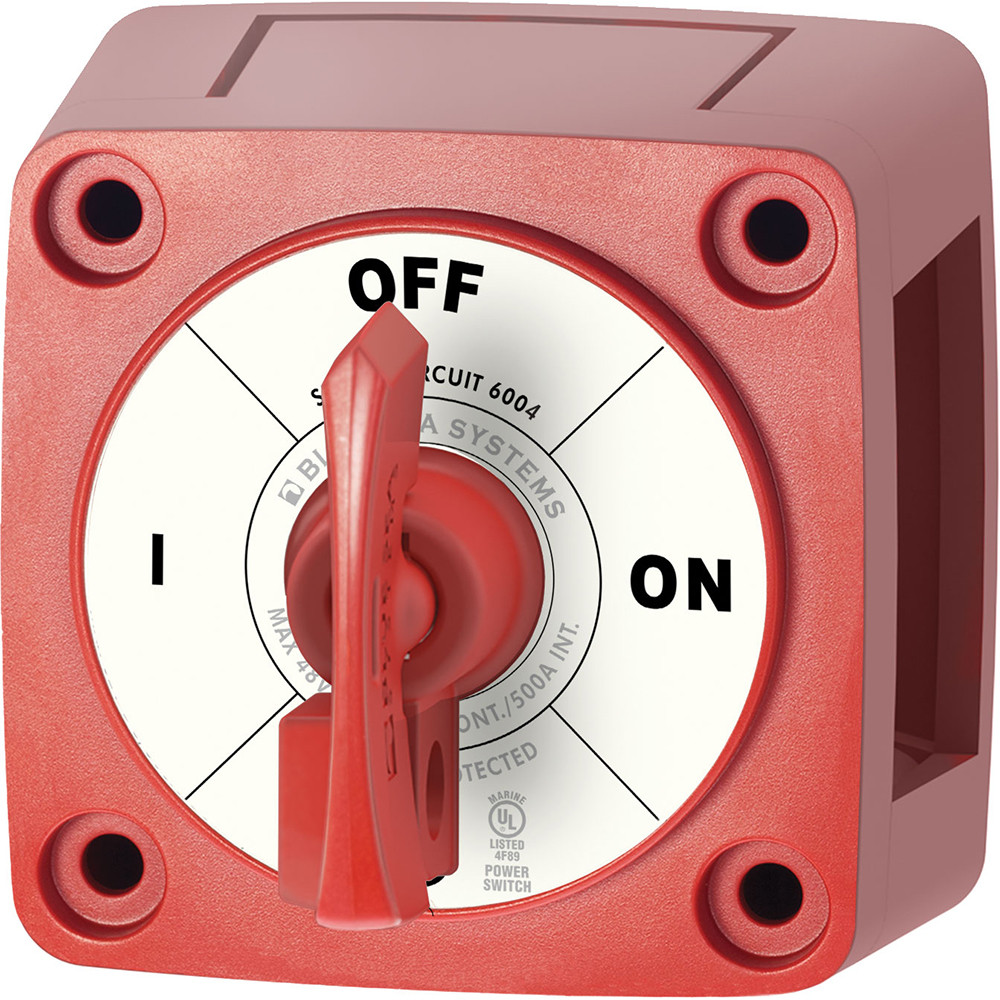

Single Circuit ON-OFF with Locking Key - Red
300 Amps continuous rating for outboards and small gasoline or diesel engines
Specifications:
300 Amps continuous rating for outboards and small gasoline or diesel engines
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- 7/8" (22 mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- One-piece stainless flange nuts ensure safe and secure connections
- Isolating cover protects rear contacts
- Breakout tabs allow wire access in any direction
Specifications:
- Switch Type: Single Circuit ON-OFF
- Color: Red
- Maximum Voltage: 48V DC
- Continuous Rating: 300A
- Intermittent Rating: 500A
- Cranking Rating 30 sec: 900A
