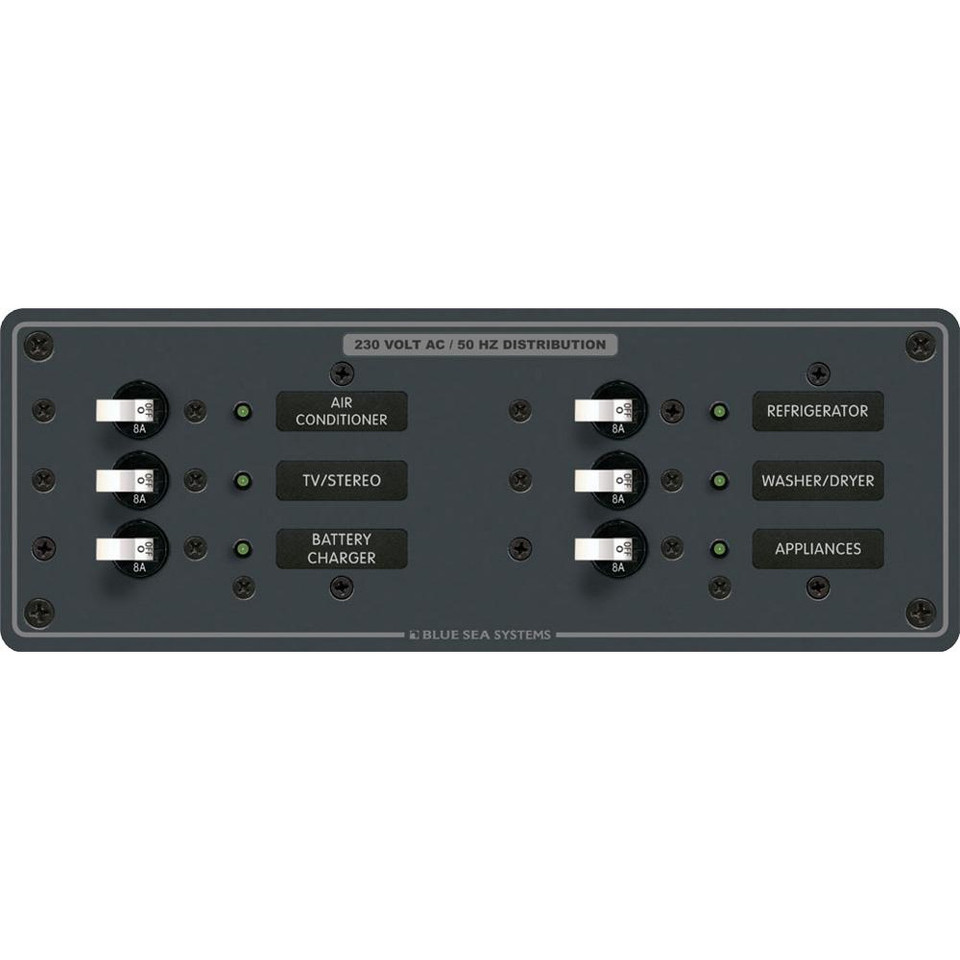

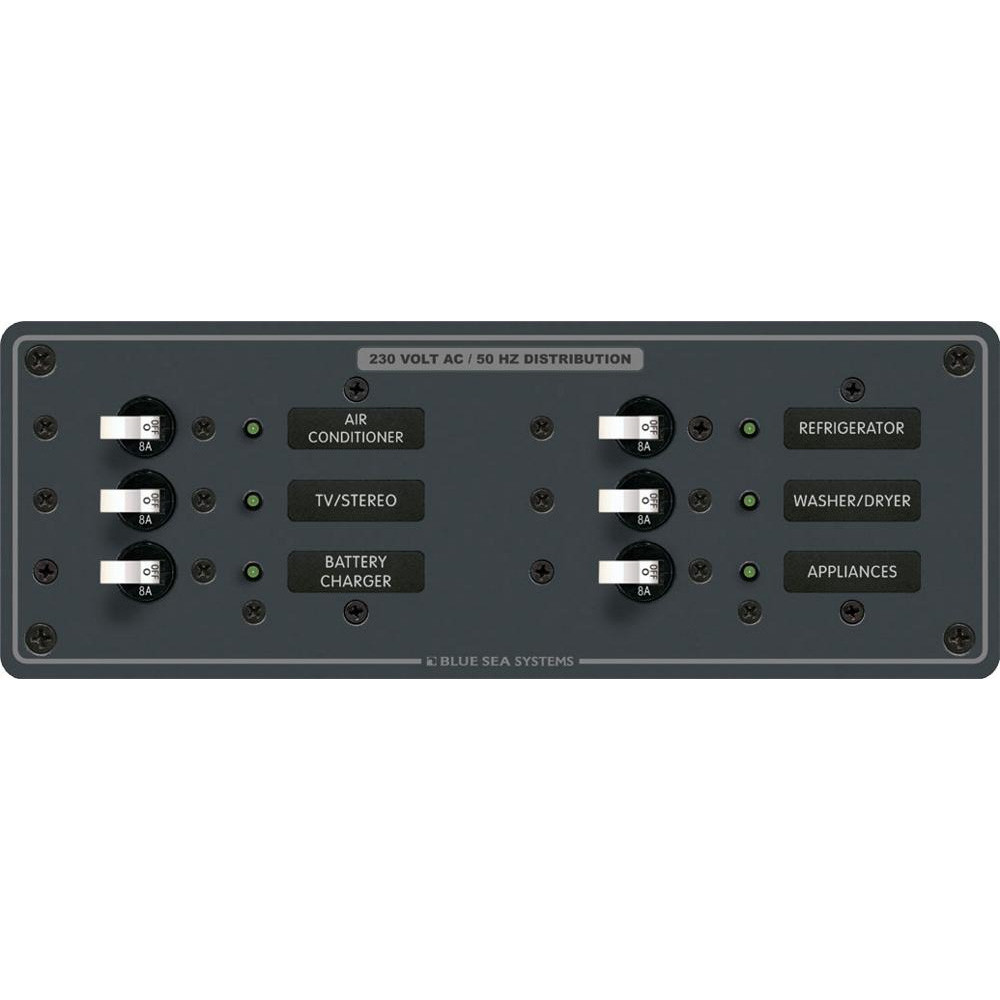

8197 AC 6 Position
Features:
- All hot, neutral, and safety ground buses installed, fully pre-wired
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit posistions
- Maximum panel amperage - 100 Amperes
- MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance
- Two-part polyurethane slate gray finish
- Heavy 1/8" aluminum 5052 alloy
- Industry standard height and width
- Countersunk mounting holes throughout
- Detailed installation instructions and cutout template included
Specifications:
- Positions: 6
- Nominal Voltage: 230v AC
- Maximum Amperage: 100A
- Height: 3.75"
- Width: 10.5"
Included:
- (6) 7299 A-Series White Toggle Circuit Breaker - Single Pole 8A
- (1) 8031 Basic AC Panel Label Set - 30 Labels
- (6) 8134 LED - 230v AC Green
