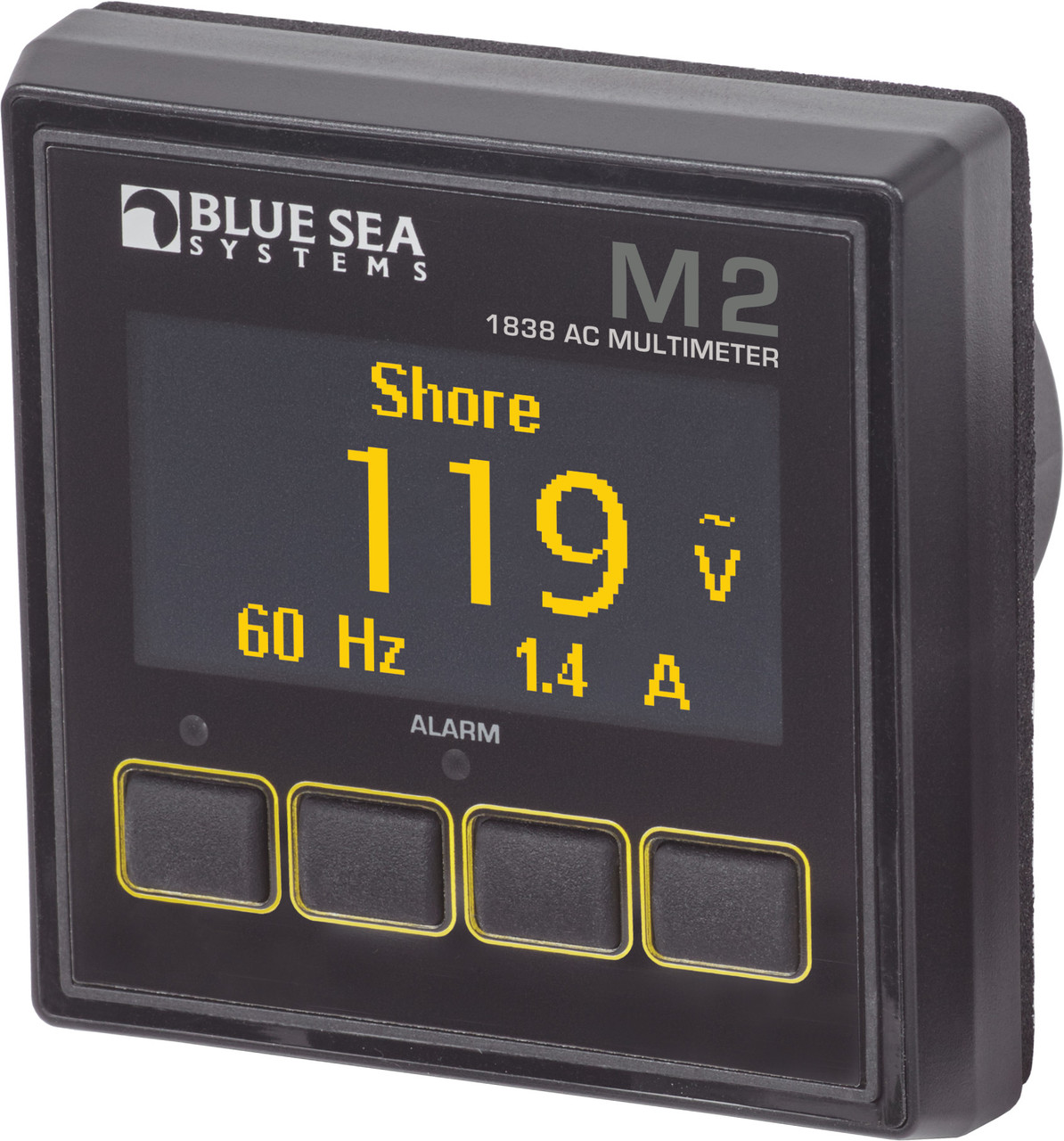

Blue Sea M2 AC Multimeter
Model: 1838-BSS- Auto-dimming, bright OLED display is easy to read
- Easy to adjust
- 80dB alarm on all models
- Isolated MOSFET relay
Monitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)
Specifications| Meter | Current, Frequency, Power, Voltage |
| Function | 50 to 250 to 300A |
| Resolution | 1V AC |
| Input Voltage | 7-70V DC |
| Alarms | High/Low Current High/Low Frequency High/Low Voltage |
| Current Accuracy | ± 2.0% |
| Display Size | 55mm x 28mm |
| Frequency Range | 40-90Hz |
| Frequency Resolution | 1Hz |
| Maximum Power Consumption | 1.00 Watt |
| Minimum Power Consumption | 0.3 Watt |
| Power Range | 0-45kW |
| Power Resolution | 10W (0-9990W) 0.1kW (10-45kW) |
| Voltage Accuracy | ± 2.0% |
| Weight | 4.00lb (1.81 kg) |
What's in the Box:
- M2 Head unit
- Surface Mount Bezel and Seal
- Surface Mount Gasket
- Surface Mount Cover
- Flat Mount Bezel
- Flat Mount Clamp
- Mounting Ring
- Mounting Nut
- AC Current Transformer 8256 (1X)
- Connector
- Screwdriver
