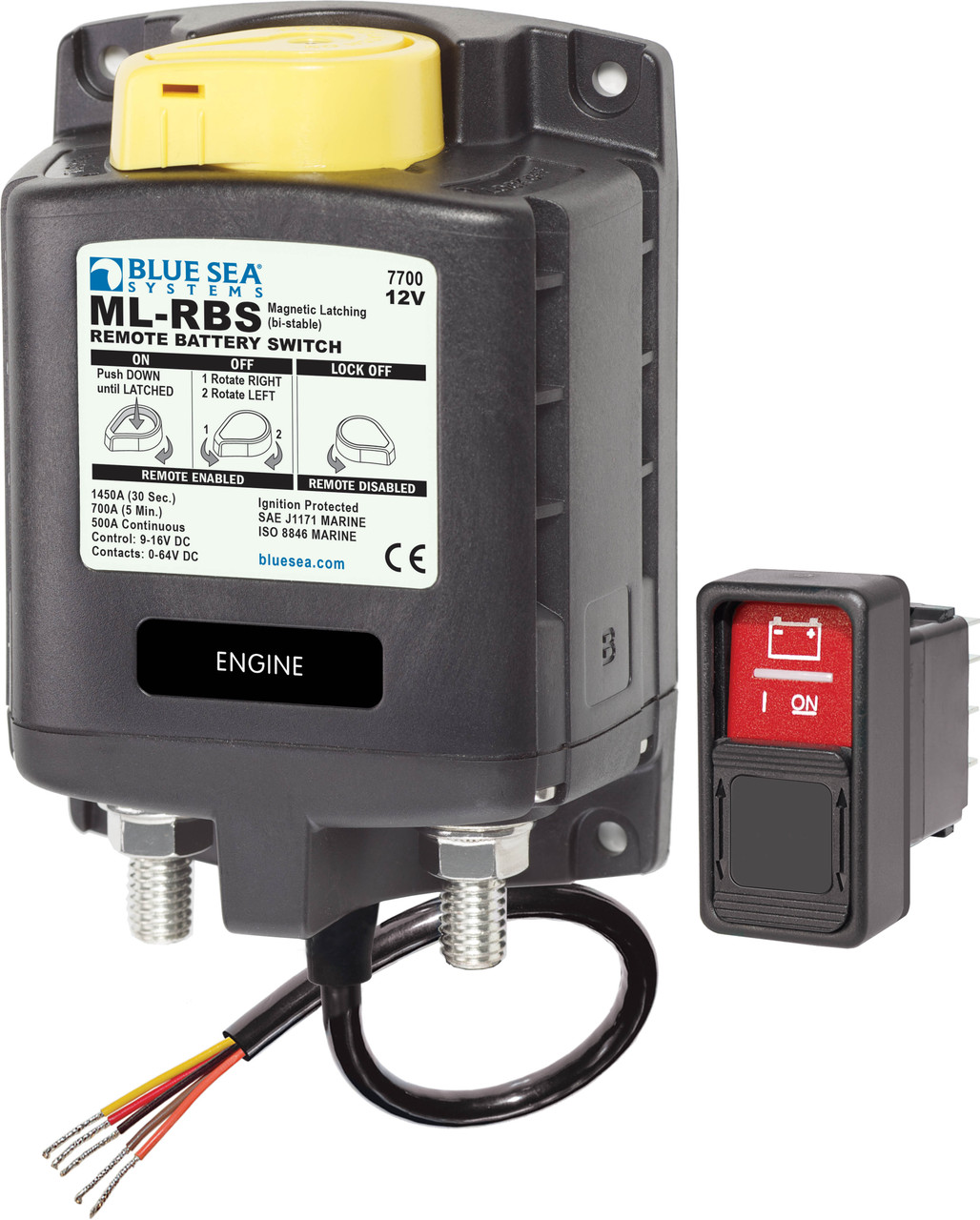

Blue Sea ML-RBS Remote Battery Switch with Manual Control - 12V DC 500A
Model: 7700-BSS- Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7? 8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations
Specifications| Control Circuit Voltage | 9-16V DC |
| Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Manual Control | Yes |
| Coil Function | Bi-Stable |
| Amperage Operating Current | 0mA |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Continuous Rating | 500A |
| Intermittent Rating | 700A - 5 minutes |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10° C |
| Maximum Operating Temperature | 60° C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | No |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 2.05lb (0.93 kg) |
