Steering Systems

UC94 Tiller Bolt KitTiller bolt kit for UC94 Cylinder

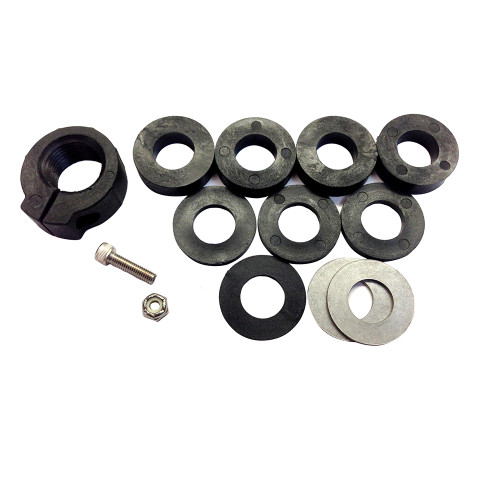

UC94 Spacer KitSpacer kit for UC94 Cylinder

Powertech Male Connector f/Autopilot to ORF HoseTypical Application:Used when connecting an Autopilot to Powertech System - Autopilot to ORF Hose

Powertech T-Fitting f/Mercury-Style ORF HosesTypical Application:3-Way ORF fitting for mercury style ORF hoses

Powertech Bulkhead T-FittingTypical Application:T-Fitting used on bulkhead fittings or helm high pressure lines on powertech helm

90° 3/8 NI Plate Comp FittingTypical Application:90° fitting from bulkhead fitting to 3/8" compression hose Specifications:3/8 COMP FITTINGFitting Side =  9/16 - 24 UNEF 2BHose Side =  9/16 - 24 UNEF 2A

Union 3/8" CompressionTypical Application:Used to connect 2 standard 3/8" compression hoses Specifications:3/8 COMP FITTINGBoth Sides =  9/16 - 24 UNEF 2A

Brass Compression Nut w/Sleeve #61CA-6Typical Application:3/8" Compression Nut with ferrule for cut to length nylon tubingSpecifications:3/8 COMP NUTFitting Side = 9/16 - 24 UNEF 2BHose Side = 3/8 Compression Ferrule

T-Fitting Assembly  - ORF HoseTypical Application:Used to replace the boss fitting in new outboard cylinders when trying to connect to 'O' ring face seal hosesSpecifications:ORB, Size #6 to 3/8 COMP FITTINGCylinder Side = 9/16 - 18 UNF 2AHose Side =...

1/4 NPT to 3/8 T-FittingTypical Application:Fitting used in the back of the previous version of the UP series helms before the boss fittingSpecifications:1/4 NPT to 3/8 COMP FITTINGHelm Side = 1/4 NPTHose Side = 9/16 - 24 UNEF 2A

Boss Style T-Fitting - NickelTypical Application:Fitting for back of helm in a dual station installation Specifications:ORB, Size #6 to 3/8 COMP FITTINGCylinder/Helm Side = 9/16 - 18 UNF 2AHose Side = 9/16 - 24 UNEF 2A

Brass Plug w/O-Ring for PumpsTypical Application:Compensating line brass plug of the UP series helmsSpecifications:1/4 NPT PLUGHelm Side = 1/4 NPT
