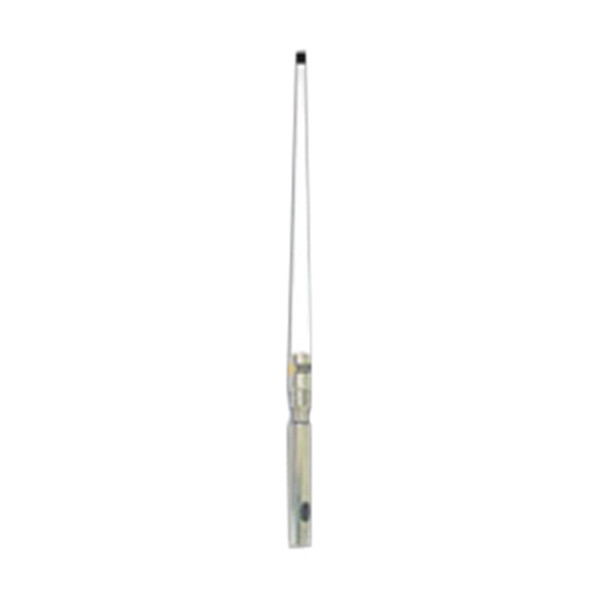

Digital 869CW-S 8' Global Cell
With Male Ferrule
Model: 869CW-S- Color: White
- Powerful brass radiators
- Soldered connections
- Power directing ferrite choke bead
- High gloss urethane finish
- 316 stainless steel ferrule
- 9dB gain
- Stainless steel double female ferrule for mounting 1"-14 threaded base
- Highest quality type N female
- Cable not included - Use our PowerMax™ low loss antenna cable
- Omni-directional radiation pattern
- Bandwidth VSWR:< 1.5:1 = 824 to 960 and 1710 to 2170 MHz
- 50 Ohm impedance
- Maximum input power of 250 Watts
- Dimensions: 30"L x 1" tapered OD
- White, UV stable polyurethane coating exterior finish
- Wind rating of 125 mph
- 1"-14 threaded double female ferrule installation
Digital Antenna's global marine cellular antennas are the first ALL BAND marine cellular antennas and are designed and manufactured for all cellular systems, including third generation (3G) and WCDMA technology. With a powerful 9dB gain and professional marine grade construction, these 8' omni-directional cellular antennas improve signals on all cellular bands (850, 900, 1800, 1900 and 2100 MHz) and deliver high performance that will last for years. Each antenna is designed for easy connection to your cell phone or amplifier. For maximum cellular range up to 50+ miles, use with Digital Antenna's PowerLogic™ North American or Euro/Asian cellular amplifiers. All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.
Specifications| Best Use | Cellular |
| Frequency | 850 to 2100 MHz |
| Gain | 9 Decibels |
| Lead | Type N Female Connector |
| Length | 8 Feet |
| Warranty Details | Five Years |
