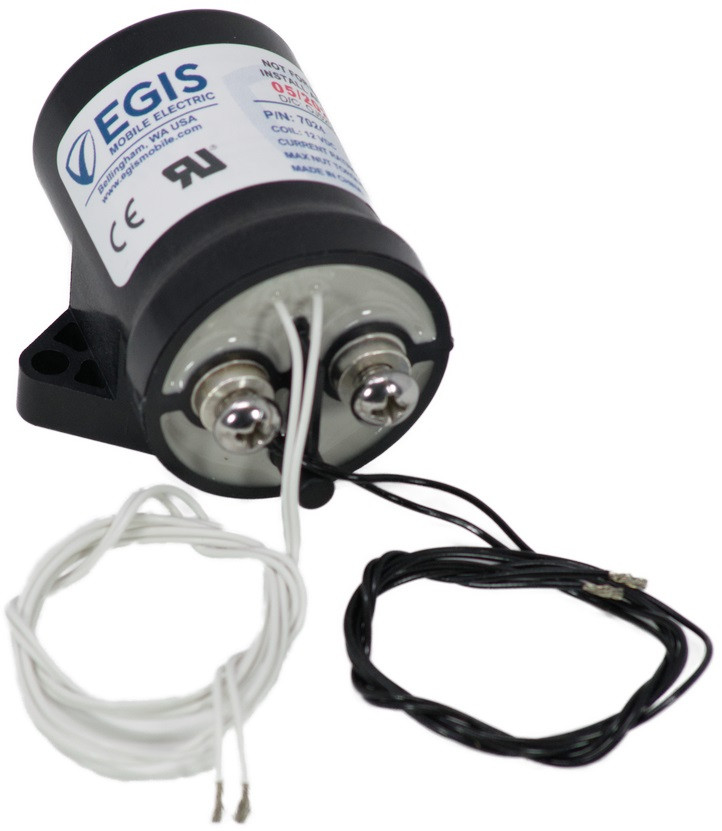

EGIS 100A 12 Contactor with Auxiliary Contacts Side Mount
Model: 7024- SEALED ENCLOSURE: Sealed against dust and moisture penetration. High temp rated for all installation locations.
- 18-8 STAINLESS STEEL SELF LOCKING HARDWARE: Resists corrosion and ensure long term connection reliability with premium hardware.
- EASY MOUNTING: Reinforced mounting holes provide secure installation and easy attachment for the installer.
- REMOTE STATUS SUPPORT: Optional auxiliary contacts that support remote status indication.
Ignition Protected safe for installation in closed compartments with potential explosive gases
High Electrical Switching Endurance delivers 6,000 cycles at 100A / 350V, 100,000 cycles at 100A / 14V
High Interrupt Current Capability safely able to open in a locked starter situation (up to 1,250 A @ 14 Vdc)
Bullet-proof Construction: Sealed device, high temp materials for engine compartment applications, and stainless self-locking hardware.
4 Year Industry Leading Warranty
Specifications| CONTINUOUS CURRENT (AMPS) | 100 |
| OPERATION CONTROL VOLTAGE | 8-16 Vdc |
| INGRESS PROTECTION | IP67 / IP69K |
| IGNITION PROTECTION | ISO-8846 / UL 1500 |
| MIN OPERATE TEMP (DEG C) | -40 |
| MAX OPERATE TEMP (DEG C) | 85 |
