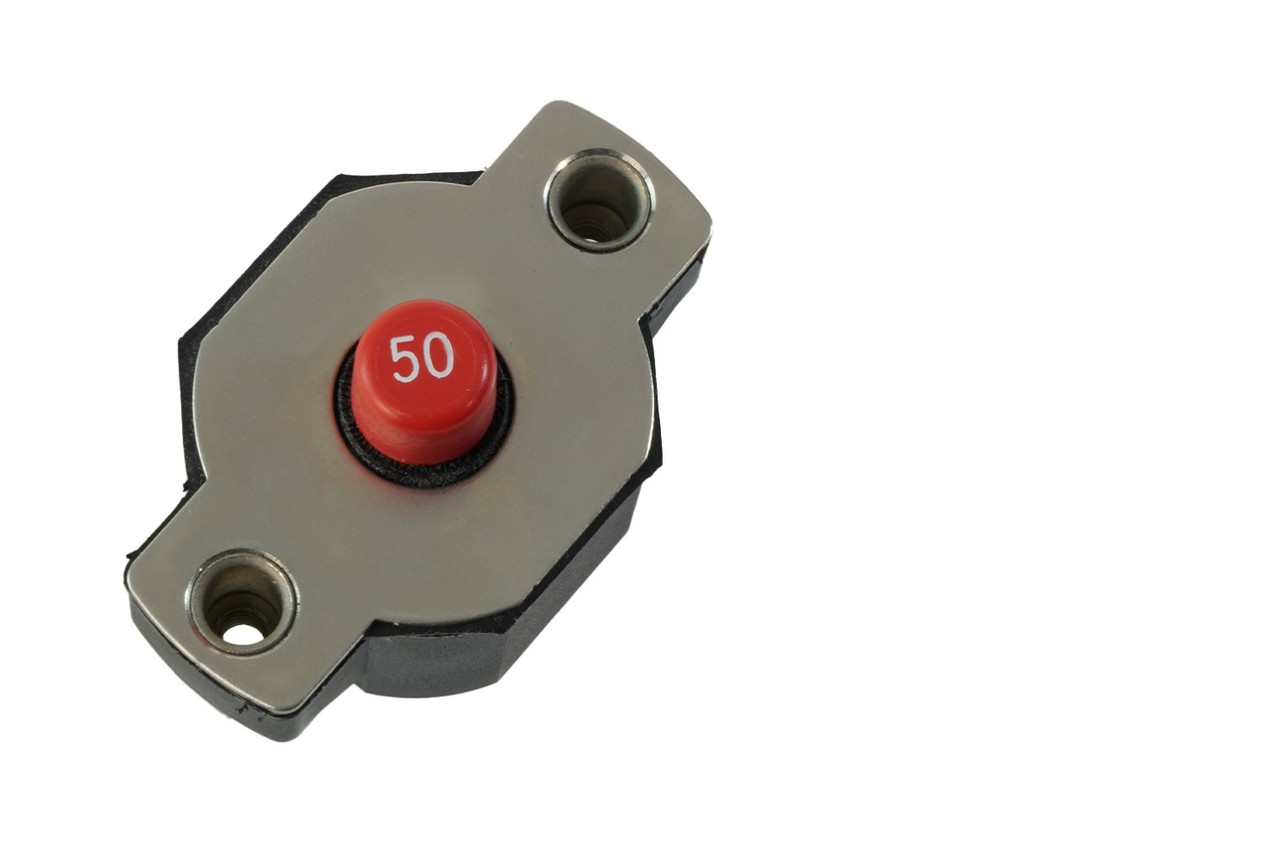

EGIS 50A Medium Duty Push Button Circuit Breaker
Model: 4712-50- Compact Design Easy to install in close proximity for maximum circuit protection panel density.
- Locking Hardware Anti rotation & corrosion resistant hardware ensure long service life in harsh environments.
- 10-32 Mounting Nut Easily install breaker with preferred 10-10-32" threaded fastener.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
32 Vdc Rating: easily supports 12 and 24 Vdc applications while offering improved protection rather than using fuses.
Trip-Free Design cannot be forced on during fault condition.
Meets ABYC E-11 Interrupt Requirements
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| CONTINUOUS CURRENT (AMPS) | 50 |
| MAX VOLTAGE (VDC) | 32 |
| CYCLING ENDURANCE | 100 |
| INTERRUPT CURRENT @ 32 VDC (AMPS) | 3,000 |
| Trip Free Design? | Yes |
| INGRESS PROTECTION RATING | J1428 |
