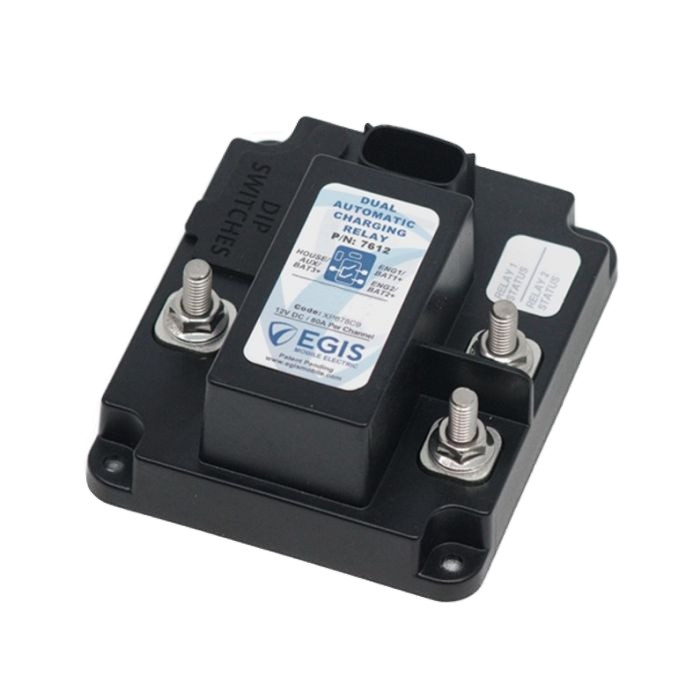

EGIS 7612 Programable ACR Triple Battery

EGIS 7612 Programable ACR Triple Battery

• TOP SIDE DIP SWITCHES Accessible after mounting, for programming voltage settings and determining active features. Protected by self-retained cover.
• STAINLESS STEEL SELF-LOCKING HARDWARE 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
• INTEGRAL I/O CONNECTOR Sealed Molex MX-150 connector eliminates the susceptibility to corrosion and vibrating loose of 1/4" quick connect terminals on competitive products.
• CONNECTION OPTIONS Comes standard with Deutsch DT/AT style connector harness. Provides three connection options (MX-150, DT/AT, Wire Leads)
• EASY INTEGRATION WITH RT FUSE BLOCKS (24 HR CIRCUITS) Optional EasyLink bus bars reduces space and cost to connect TH Series Relays with RT Series Fuse Blocks.
• LED DIAGNOSTICS Provides indication of pending relay ON/OFF, under voltage, over voltage/temp, start isolation/assist, and Output on/off status.

Ultra-Low Power Draw Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA, will not deplete batteries even after extended electrical system downtime.

Optional Under-Voltage Lock-Out provides ability to prevent either ACR from connecting a good battery under charge with a battery that has a shorted cell, ensuring a single battery or bank will not deplete the other system batteries.

Start/Engine Isolation and Start Assist functions are optional for each relay; allowing protection of sensitive electronics from engine starting events or the option to boost cranking effectiveness.

Adjustable Off-Voltage for Auxiliary Battery Priority provides ability to share start battery energy for auxiliary without risking engine starting ability.

Additional Low Amp Output can be used to report device status remotely, or drive a secondary relay for charge to a battery bank without a charge source (see examples)
