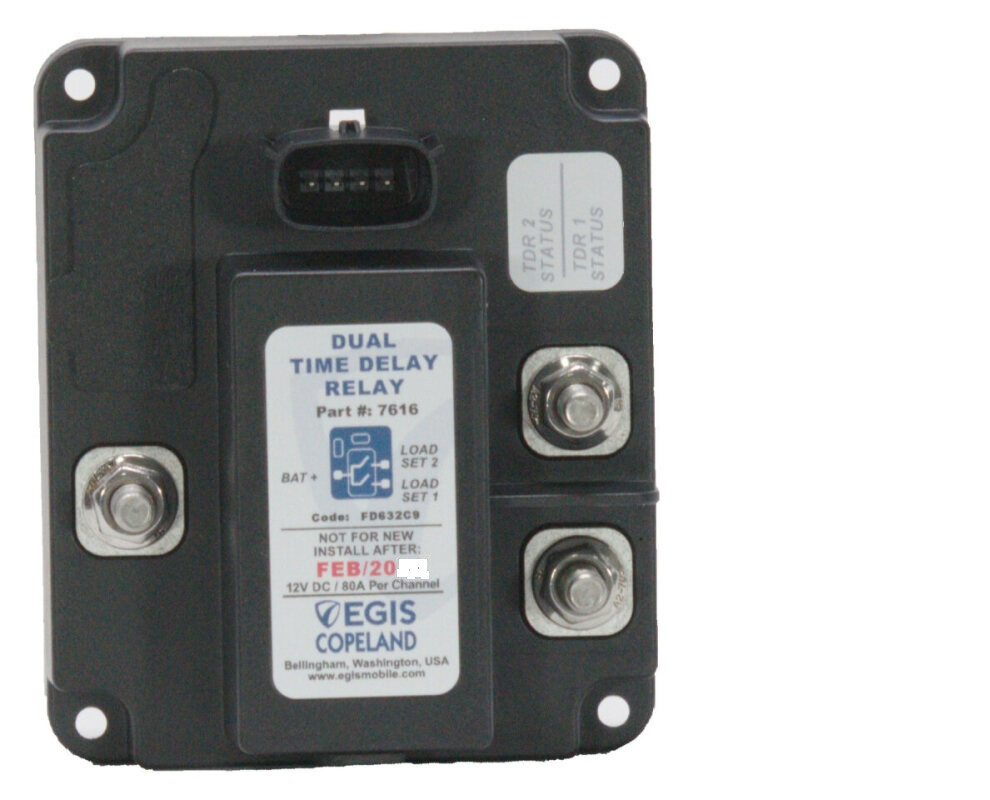

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v
Model: 7616- TOP SIDE DIP SWITCHES: Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
- STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
- INTEGRAL I/O CONNECTOR: Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
- STANDARD AND OPTIONAL HARNESSES: Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
- EASY INTEGRATION WITH CT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
- EASY INTEGRATION WITH RT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
- LED DIAGNOSTICS: Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.
| Maximum current | Continuous: 80 Amps DC per Output (160 A Total) Intermittent: 120 Amps DC (5 Minutes) per Output |
| Off State Current Draw | 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by) |
| Operating Specifications | Voltage: 12 Vdc Nominal (8 - 18 Vdc) Temperature: -40 to 85 Deg C |
| Product Warranty | 4 Years from date of manufacturer |
| Time Delay Options | 5 Sec through 4 hours via Dip Switches |
| Environment Protection Standards | Waterproof to IP66 . IP6K9K Ignition Protected to ISO 8846 |
| Optional Features | Optional Features |
