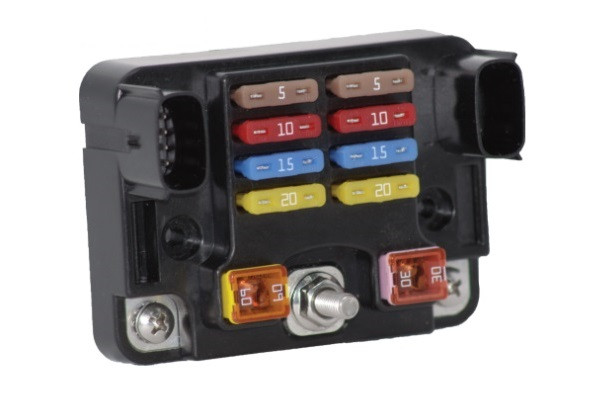

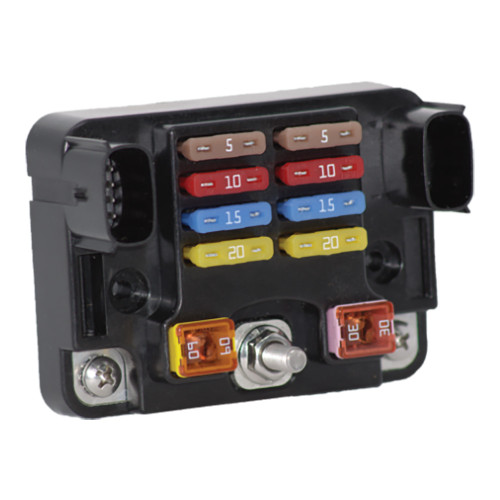

EGIS Mobile Marine Fuse Block ATO/Jcase 8+2 M6 in
Model: 5015- Compact Solution Combines Low Amp and High Amp Fuse Protection in One Product.
- Reduce Install Space and Total Installed Time/Cost, Two MX-150 Connectors for Low-Amp Outputs
- Two (2) High-Amp (20-50A) Outputs Supports All Necessary Circuit Protection Needs in One Product
- Protects Add-On Circuits from accidental short circuits to frame ground or battery negative, or from overload events.
| Total Continuous Current | 200 |
| Max Current Per ATO Fuse | 22 |
| Voltage range | 8-36vDC |
| Max Current Per LP L-Case Fuse | 50 |
| Max Current Per 4 POS MX-150 | 50 |
| Max Wire Gauge, MX-150 Connector | 14 AWG |
