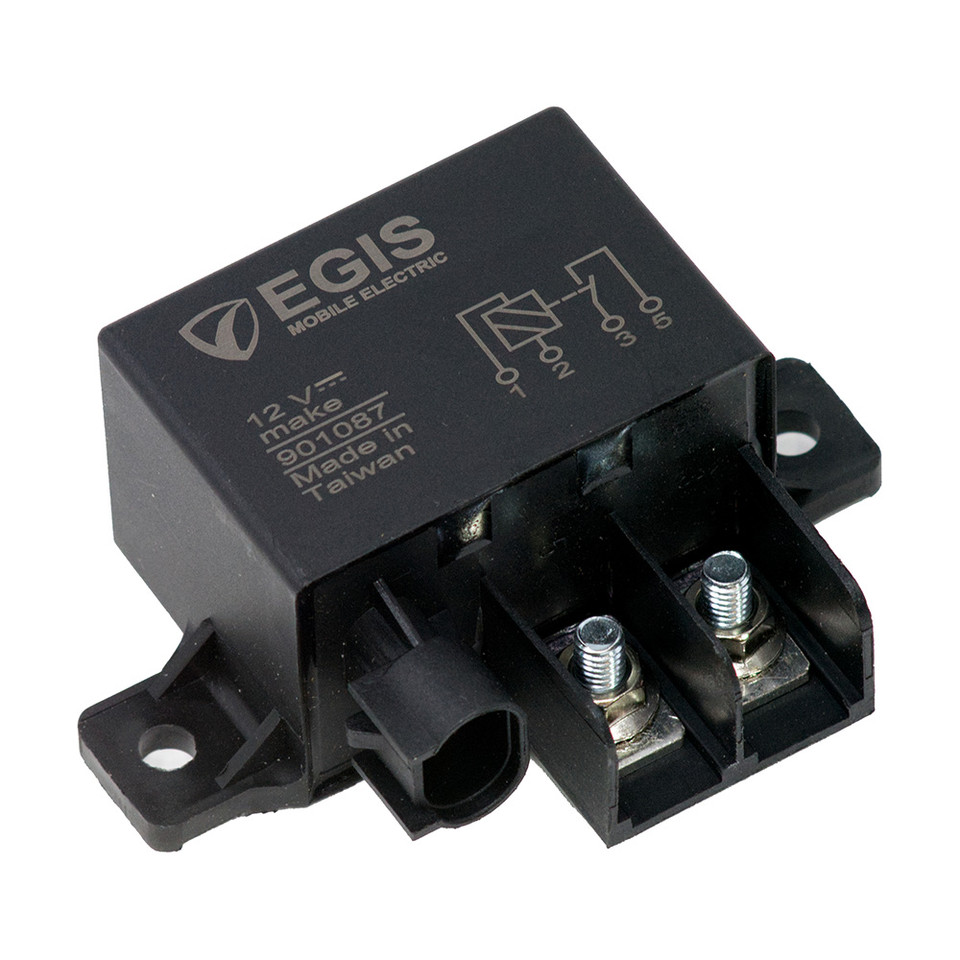

Relay 12V 150A with Resistor
This is an automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.
Features:
- Delphi Metripak connector built-in to the enclosure (sealed enclosure)
Specifications:
- Continuous Current @85C (Amps): 180
- Intermittent Current @85C (Amps): 240
- Minimum Operate Voltage (VDC): 7.2
- On-State Current Draw @12V (mA): 325
- Release Voltage (VDC): 2.2
- Switching Current @13.5 VDC (Amps): 300
