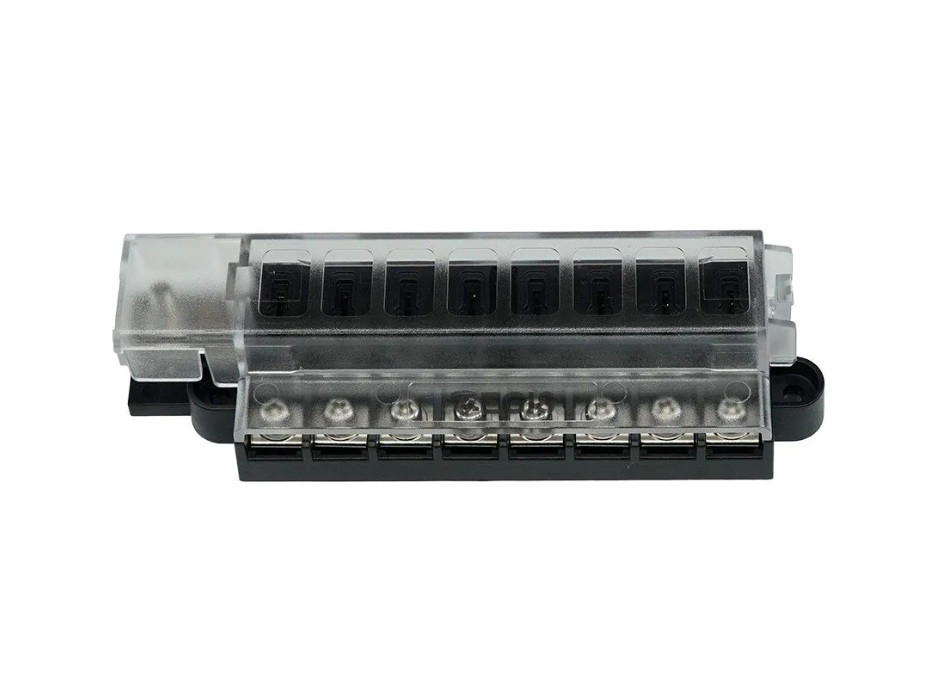

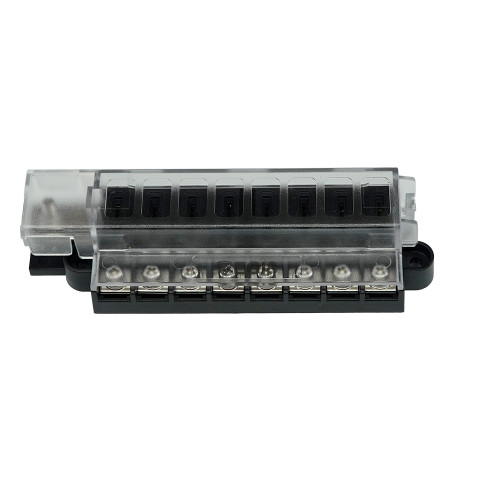

Egis Marine 8046 RT Fuse Block 8 Circuitsm with Cover
Model: 8046- Ignition protected when latching cover is secure for use in engine bay/combustible enviroments
- Harsh Enviroment Design with stainless steel self-locking hardware and optional weather-proof labels in standard and customized options
- Includes latching protective cover with integrated label recesses.
Compact inline 8 position fuse block has single side wire entry for tight installations spaces.
Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
Specifications| CONTINUOUS CURRENT Per Circuit (AMPS) | 30 |
| Maximum Current (Entire Block) Amps | 100 |
| Nominal Voltage | 12/24Vdc |
| Maximum Voltage | 60Vdc |
| Input terminal size | M5-0.8 |
What's in the Box:
- Fuse Block
- Cover
