FX+0900 Flying Sail Furler
Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.
Features:
- Adapted to sailboat from 6 to 10.5m (20 to 30 ft.)
- Code sail surface of 30m²/ 322ft² maximum
- Captive quick-release pin
- Possible conversion for asymmetric Spinnaker
- Composite/carbon housing
- Maintenance-free units (sealed bearings)

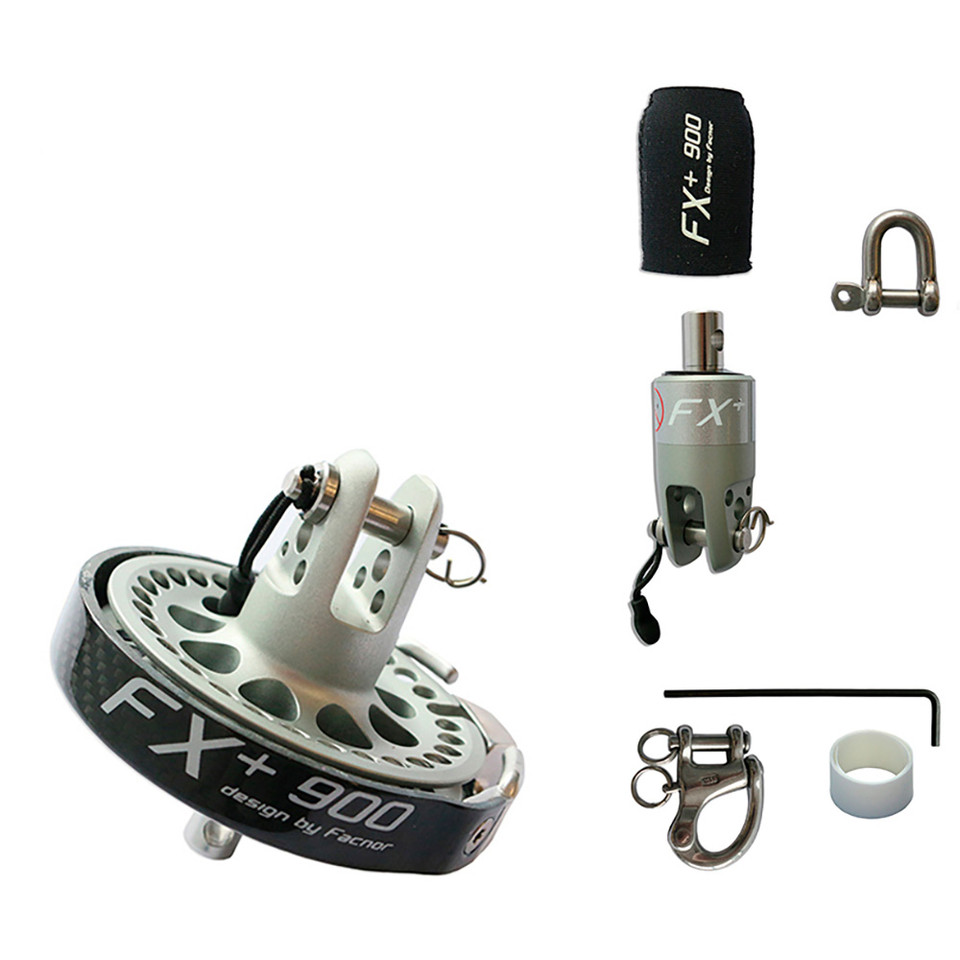

The Standard Kit of the FX+900 Furler Includes:
- One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum
- One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking
- One snap shackle as the bottom drum attachment (Optional SSH+900/1500 solid sheave as an alternative)
- One shackle as the top swivel attachment (optional FRX900/1500 2-to-1 friction ring as an alternative)
Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:
- Monoblock's conception of the mechanisms for more sturdiness and long-lasting
- Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin
- Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling
- Is rotation transmitted through an anti-torsion luff rope? Optional—sliding inside the luff tape and fitted with a thimble on each end
- Optimize the investment by converting the furlers for use with the asymmetric spinnaker; just add a FAST top-down thimble
Specifications:
- Weight: 0.57 kg
- Sailboat Length (feet): 20'-30'
- Code Sail Area (m²): 30,00
- Code Sail Area (ft²): 322,00
- Staysail Area (m²): Not adapted to furl a staysail
- Staysail Area (ft²): Not adapted to furl a staysail
- Safe Working Load (tons): 0,90
- Standard Top Swivel Attachment: Shackle
- Standard Bottom Drum Attachment: Snapshackle
- Ratchet Option: NOT available
- Continuous Line Drum Ø: 85,00mm
- Spliced Furling Line Ø: 6,00mm
- Warranty: 3 years
*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 900 top-down thimble.
