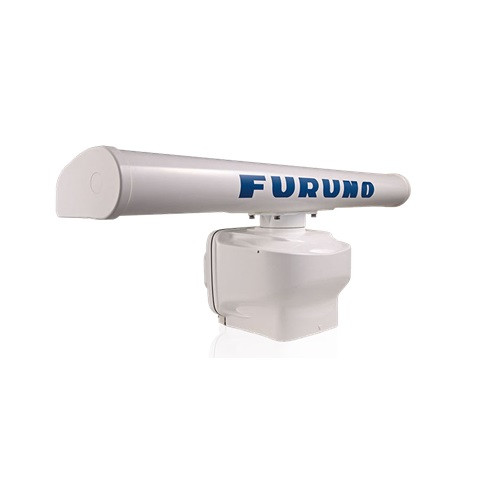

Furuno DRS12AX 12Kw X-Band Radar 3.5' Antennawith 15m Cable
Model:Furuno DRS12AX 12Kw X-Band Radar 3.5' Antennawith 15m Cable
Model: DRS12AX/3- 12kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20 m
- Fast Target Tracking™
- Bird Mode
- New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- New smart-connector cable
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS12AX is a 24V system; a converter will be required for use with 12V power systems
Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.
The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Specifications| Input Voltage | 24vDC |
| Antenna Options | 3' |
| Horizontal Beam | 2.3° |
| Verticle Beam | 22° |
| Maximum range | 96nm |
| Dual RangeScanning | Yes |
What's in the Box:
- Scanner Unit
- Fuse ATV10A60V
- Corrosion-proof pad x 4
- Hex Nut M12 x 8
- Spring Washer M12 x 4
- Flat Washer M12 x 4
- Hex Stud M12x70 x 4
- Installation Manual
- Mounting Template
- Environmental Data Sheet
- Signal/Power Cable Assy 15M
- XN10/3.5 3.5' Antenna
