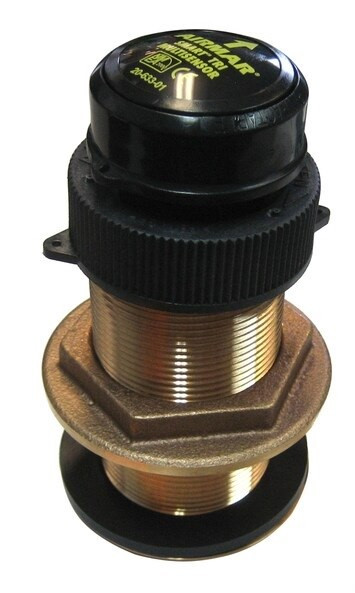

Furuno DT-800MSF Depth and temperature in one compact bronze housing
Model: DT-800MSF- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
- Acoustic Window: Urethane
Designed with Airmar’s exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4’) of water and can reach depths up to 180 m (600’).
Specifications| Weight | 1.5 kg (3.4 lb) |
| Data Update Rate | 1 per second |
| Minimum Sounding Depth | 0.5 m (1.6’) |
| Maximum Sounding Depth | 180 m (590’) |
| Pressure Rating | 3 m (10’) |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Smart Sensor Supply Voltage at 100% Sound Power Output | 10 VDC to 25 VDC |
| Supply Current | 40 mA S |
| tandard Cable Length | 6m |
| NMEA 2000® Load Equivalency Number (LEN) | 4 |
