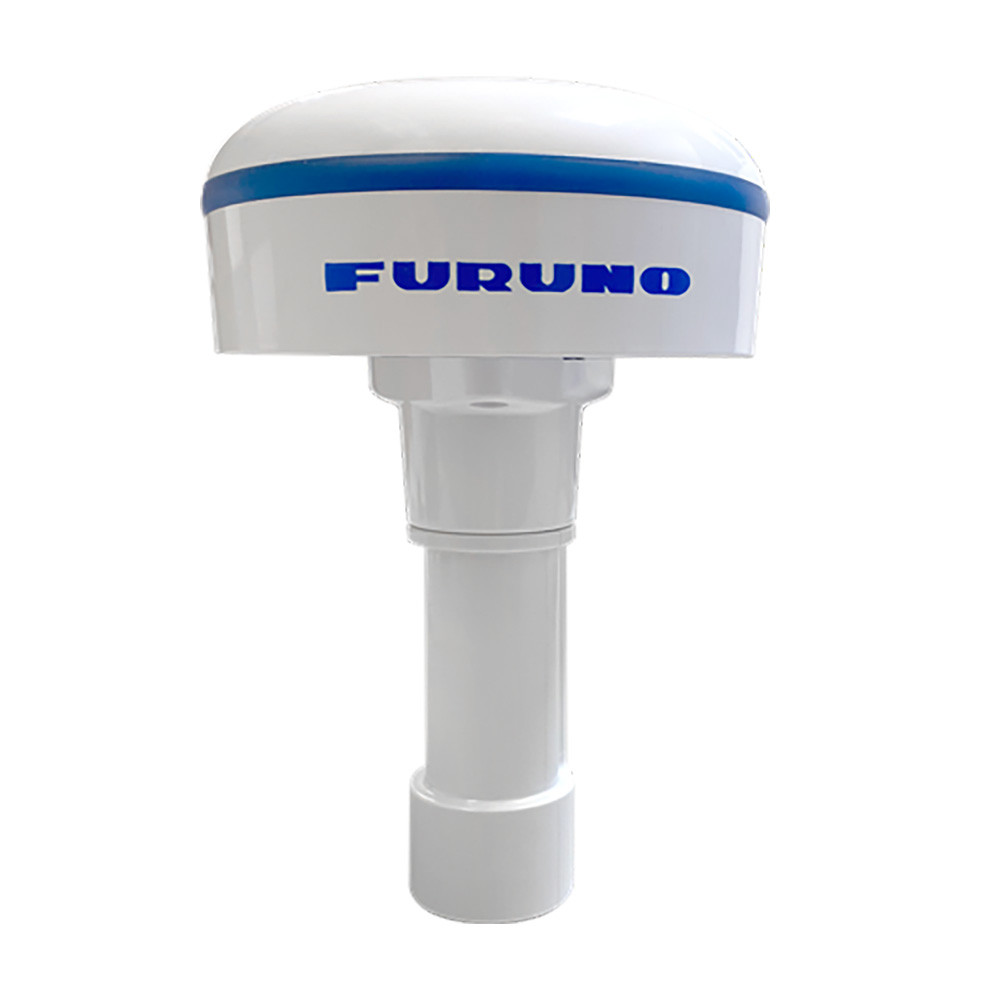

GP340 GNSS GPS Receiver
Compact, Versatile & Accurate Positioning
The GP340 is a high-performance GNSS Receiver designed for any type of vessel. Equipped with a powerful 75-channel GNSS core, this compact and cost-effective receiver offers extremely accurate position fixes within 3 meters. The GP340 features a 10 Hz refresh rate and is capable of data output in either NMEA2000 or NMEA0183* formats, making it an ideal GPS sensor for use with NavNet or countless other systems that rely on high-precision GPS information for demanding maritime, industrial, and survey applications.
The GP340 Supports:
- GPS (L1/L5)
- GLONASS (L1)
- Galileo (E1/E5)
- QZSS (L1/L5)
- Beidou (B1/B2)
The GP340 supports SBAS, including WAAS, EGNOS, MSAS, and GAGAN. The sensor comes with all of the hardware required for deck- or mast-mounting solutions, and a 6-meter cable with NMEA2000 connector is supplied as standard. An optional NMEA0183 cable is also available.
Specifications:
- Data Type: NMEA0183 or NMEA2000
- Power Usage: 12-24 VDC
- Receiver Type: GPS or GLONASS or QZSS or SBAS or WAAS or Galileo or WAAS-GPS
*NMEA0183 requires optional cable
