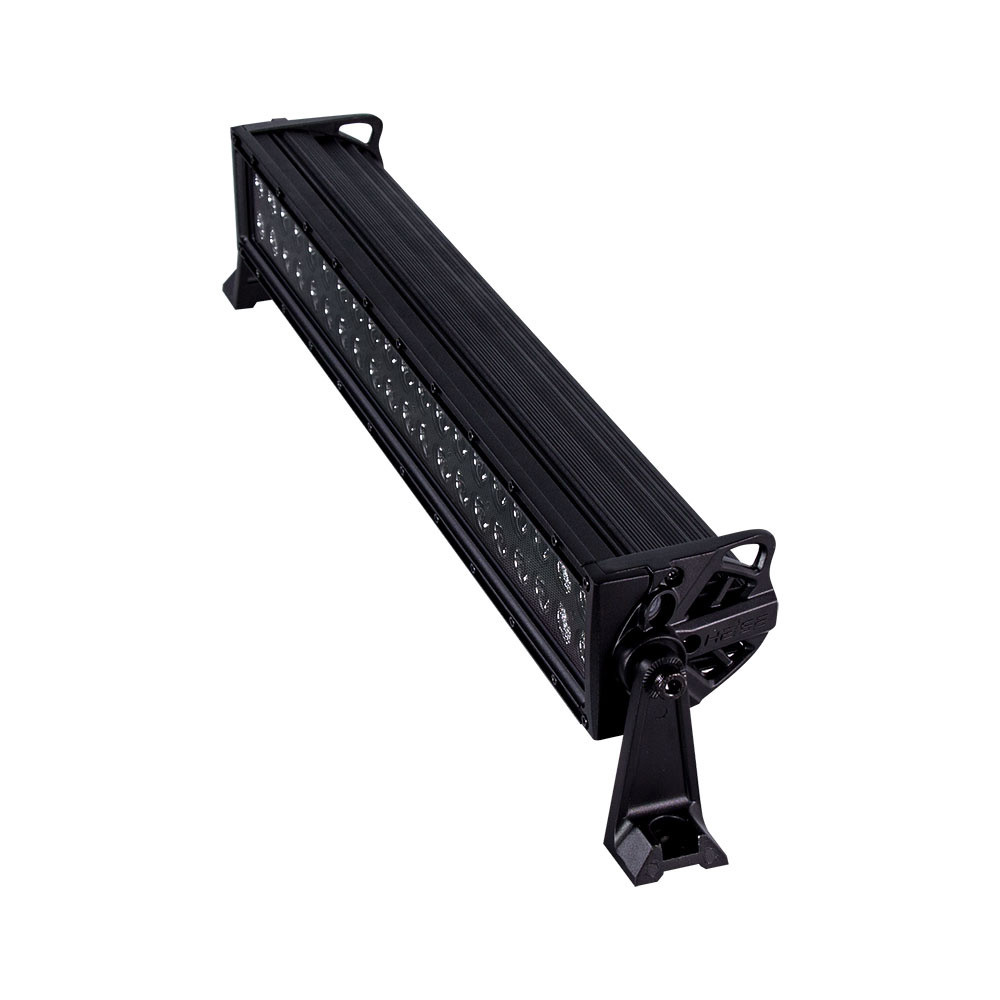

Dual Row Blackout LED Light Bar - 22"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 120W (40–3W CREE LEDs)
- Raw Lumens: 9600
- LUX @ 10M: 655
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Die–cast Aluminum Housing
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Hole Dimensions:
- Brackets turned inward – 21.3125"
- Brackets turned outward – 23.75"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 3"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: 6.3 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
