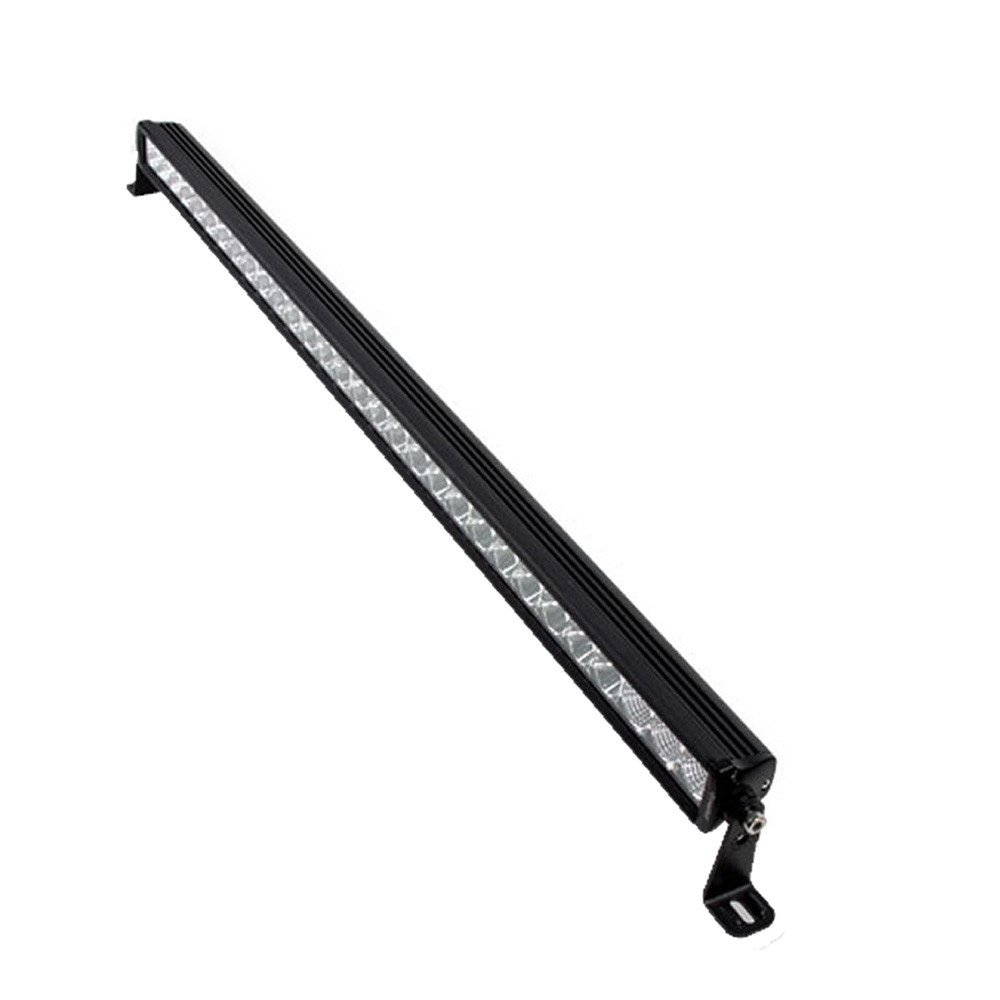

Single Row Slimline LED Light Bar - 39-1/4"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 90W (30–3W OSRAM LEDs)
- Raw Lumens: 7200
- LUX @ 10M: 2920
- Color Temperature: 6000K
- Beam Pattern: Combo/Flood(90°)/Spot(8°)
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die–cast Aluminum
- Mounting: Side and Bottom
- Hole Dimensions:
- Brackets turned inward – 39"
- Brackets turned outward – 41"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 2"
- Depth of Light Bar Itself: 2"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: 4.9 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
