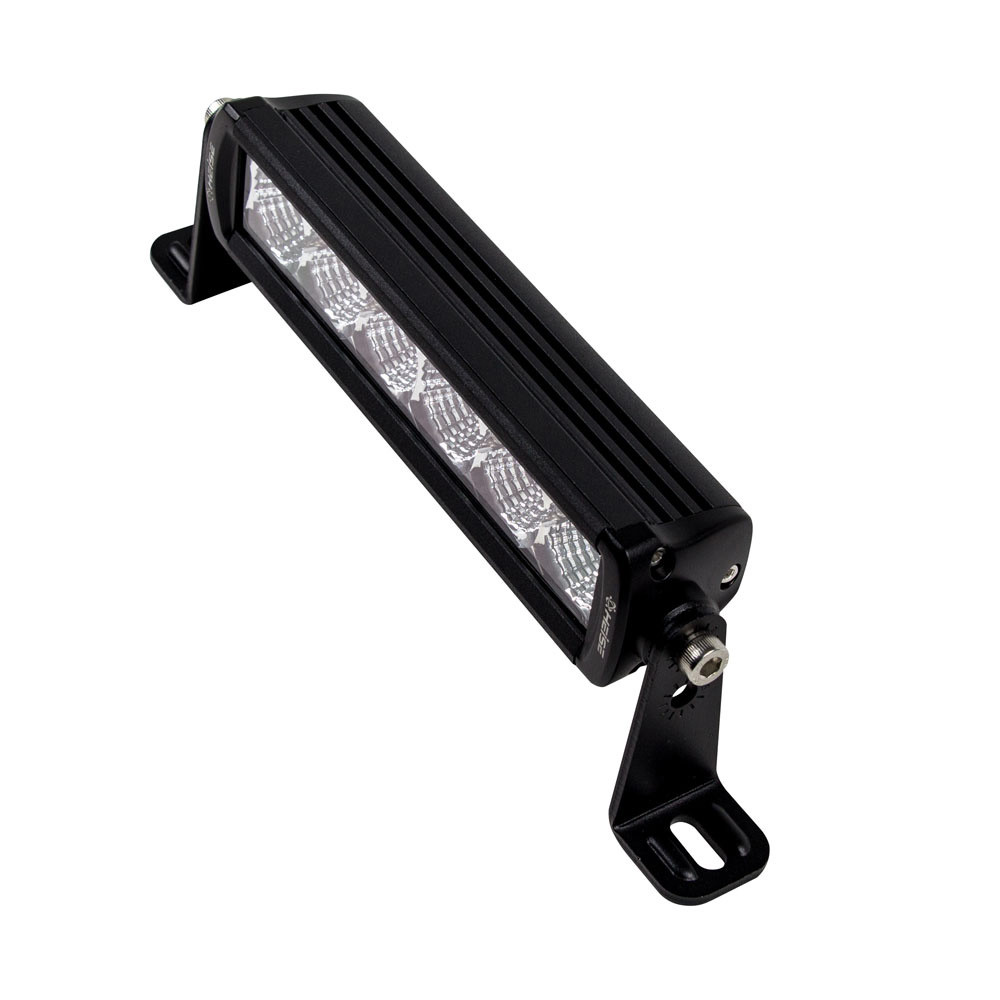

Single Row Slimline LED Light Bar - 9-1/4"
SPECS
- Input Voltage: 10–30V DC
- Wattage: 18W (6–3W OSRAM LEDs)
- Raw Lumens: 1440
- LUX @ 10M: 22
- Color Temperature: 6000K
- Beam Pattern: 90° Flood
CONSTRUCTION
- Housing Material: Powder Coated Aluminum
- Housing Color: Black
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Side and Bottom Mounting
- Mounting: Side and Bottom
- Hole Dimensions:
- Brackets turned inward – 9"
- Brackets turned outward – 11"
- Mounting Bolt Drill – .25"
- Height of Light Bar Itself: 2"
- Depth of Light Bar Itself: 2"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
OPERATION
- Operating Temperature: –40°C to +60°C
- Current Consumption: .9 amps @ 13.8 volts
- IP Rating: IP67
- Protections: Reverse Polarity
