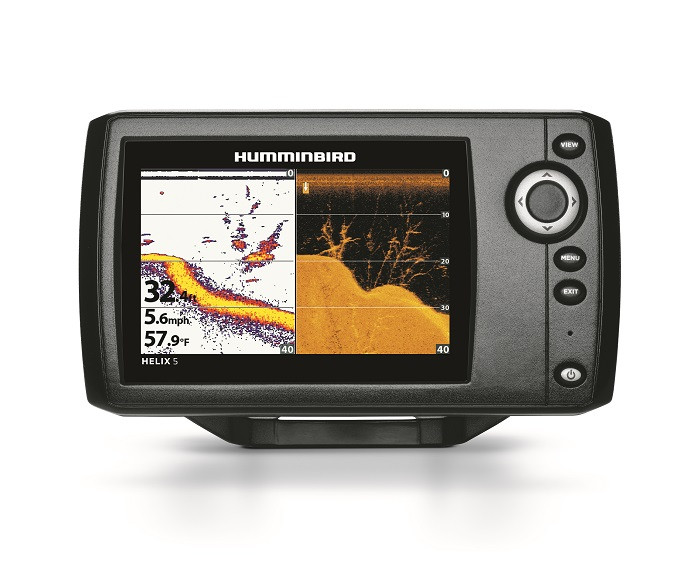

Humminbird HELIX 5 DI G2 Fishfinder
Model: 410200-1UPC: 082324049019
- Down Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.
- SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
- Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.
The HELIX 5 DI G2 with their new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.
Specifications| Display size | 5 in |
| Display resolution | 800 x 480 |
| Display type | Color TFT |
| Display colors grayscale | 16-bit |
| Standard sonar | Down Imaging/DualBeam PLUS |
| Standard sonar coverage | 16°, 28°, 45° & 75° @ -10db |
| Standard sonar frequency | 455/800/200/455 kHz |
| target separation | 2.5 in |
| Power output RMS | 500 watts |
| power output peak to Peak | 4000 watts |
| Depth capability | 350 ft (DI) & 600 ft (2D) |
| Temperature | Built-in transducer |
| Speed | Optional |
| Backlight | LED |
| PC Connect | Optional |
| Switchfire sonar | Yes |
| Split screen zoom | Yes |
| Split Screen Bottom Lock: | Yes |
| Large digit view | Yes |
| Card reader | No |
| Input Voltage | 10.8-20 VDC |
| Input Draw | 650mA |
| Dimensions | Gimbal Mount:7.55"W x 4.64"H x 3.3"D Indash Mount:7.55"W x 4.28"D x 1.13"D |
What's in the Box:
- Helix 5 DI G2
- Bracket
- Powercord
- XNT 9 DI T
- Documentation
