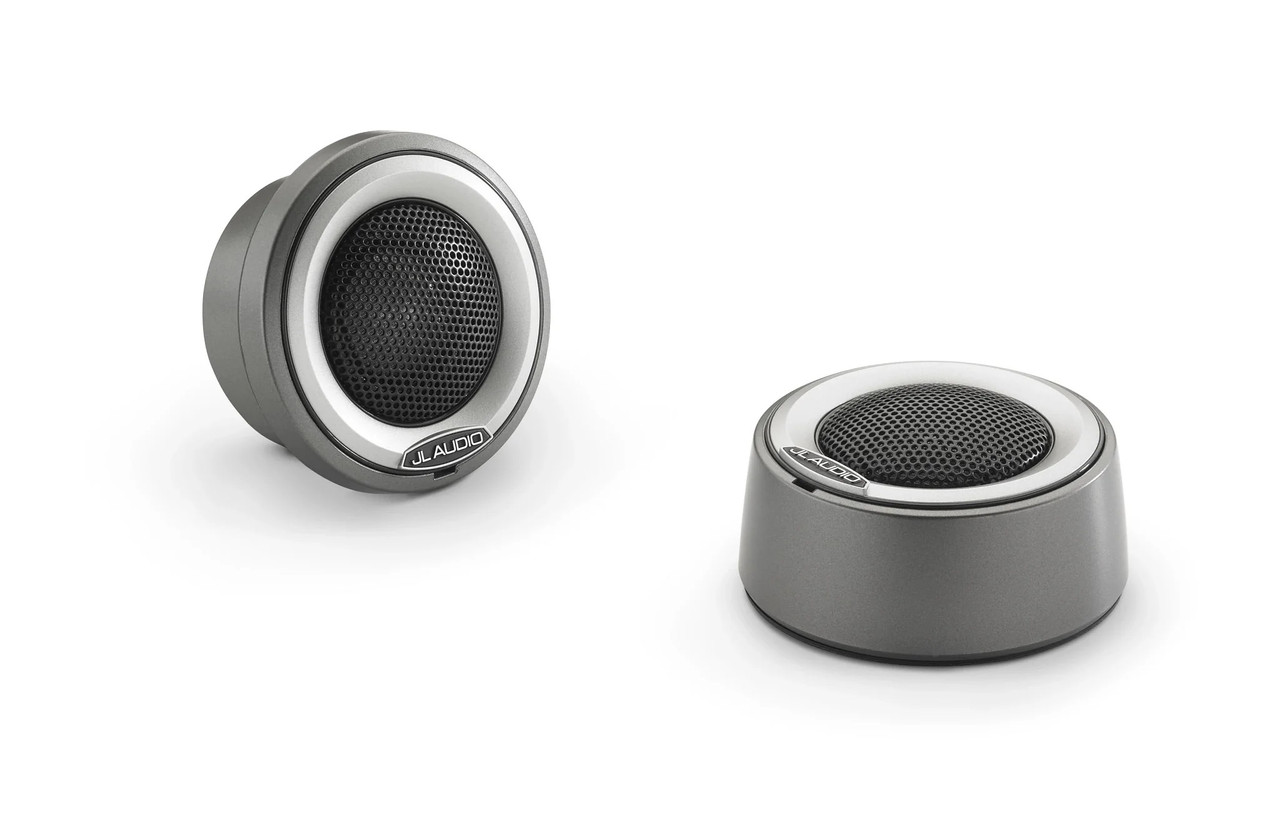

JL Audio M6 1in Component Tweeter Gray Mounting Cups and Titanium Trim
93694
Model: M6-100CT-C/S-GmTi1-inch (25 mm) M6 Marine Component Tweeters, Gray Metallic Mounting Cups, Titanium Trim Ring, Black Tweeter Mesh, Pair
The standalone, M6 component tweeters are built with a 1-inch (25 mm) silk dome diaphragm to deliver high output, wide dispersion and sparkling high-frequency detail. The tweeters can be flush-mounted or surface-mounted with the supplied fixtures. You can also choose between the included "Classic" and "Sport" badge trim rings to complete your look.
The component tweeters come with outboard, 3rd order, high-pass filters optimized for superior output and high-frequency detail. An automatic, solid-state circuit is also onboard to monitor current and minimize the possibility of tweeter failure. Like all M6 models, the component tweeters are built to withstand real-world saltwater conditions with an unsurpassed level of fidelity.
Sonic character: Powerful and Smooth.
Sold as a pair.
USA Limited Warranty: Two (2) years from the original date of purchase.
Specifications| General Specifications | |
| Continuous Power Handling (RMS) | 75 W |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 ohms |
| System Frequency Response | 4.8 Hz - 25 KHz ± 3 dB |
| Tweeter Physical Specifications | |
| Flush Mount Fixture Diameter | 2.61 in / 66 mm |
| Surface Mount Fixture Diameter | 2.67 in / 68 mm |
| Flush Mount Mounting Hole Diameter | 2.125 in / 54 mm |
| Flush Mount Mounting Depth | 1.70 in / 43 mm |
| Flush Mount Tweeter Frontal Protrusion | 0.54 in / 14 mm |
| Surface Mount Tweeter Frontal Protrusion | 1.27 in / 32 mm |
