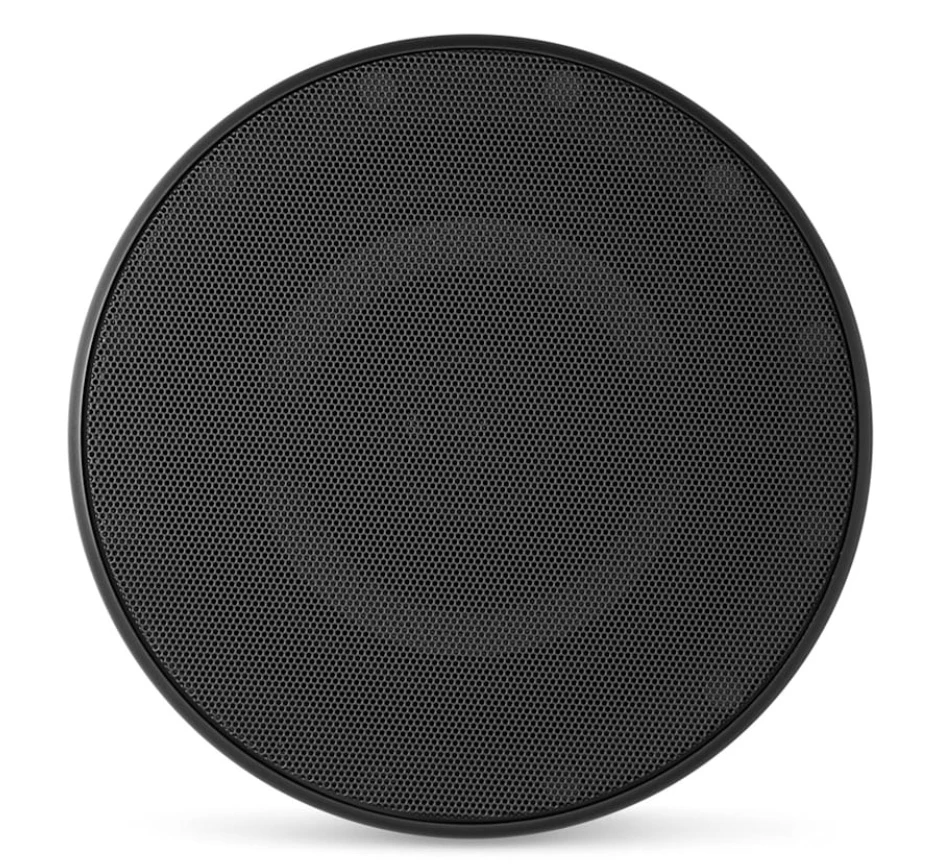

JL Audio M6 7.7in Coaxial Speakers Black LUXe Grille Single Speaker
M6-770X-L-SbSb-Single
Model: 010-03866-00- DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
- MATCHING SILK DOME TWEETERS: Precisely tuned tweeters, uniquely sized for each woofer’s diameter, produce sparkling detail and excellent off-axis response for balanced coverage in the entire listening area.
- ADVANCED FILTER NETWORKS: Each woofer chassis houses a multi-order, true two-way crossover optimized for each speaker size and electronic tweeter protection circuit to minimize the possibility of tweeter failure.
- POWERFULLY EFFICIENT: M6 marine speakers are designed to benefit from operation with quality amplification.
- REAL MARINE DUTY: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
Featuring a long-excursion woofer design paired with a suspended tweeter, M6 marine speakers are designed to yield unmatched frequency response and linear performance at all listening levels.
Specifications| Size | 7.7 in |
| Color | Black |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 91.0 dB |
| Frequency response (+/- 3 dB) | 45 Hz-25 kHz |
| Nominal impedance | 4 Ohm |
| Recommended amplifier power (RMS) | 40-200 W/Channel |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 1" (25 mm) |
| Warranty | 3 years |
| Speaker connections | Spade Connectors |
| Mounting Dimensions | |
| Mounting depth clearance | 4.26" (108 mm) |
| Frontal grille protrusion | 0.38" (10 mm) |
| Mounting hole | 7.50" (191 mm) |
| Bolt hole circle | 8.18" (208 mm) |
What's in the Box:
- Marine coaxial loudspeaker
- Six stainless steel mounting screws
- Six stainless steel screws washers
- Grille removal tool
- Mounting template
