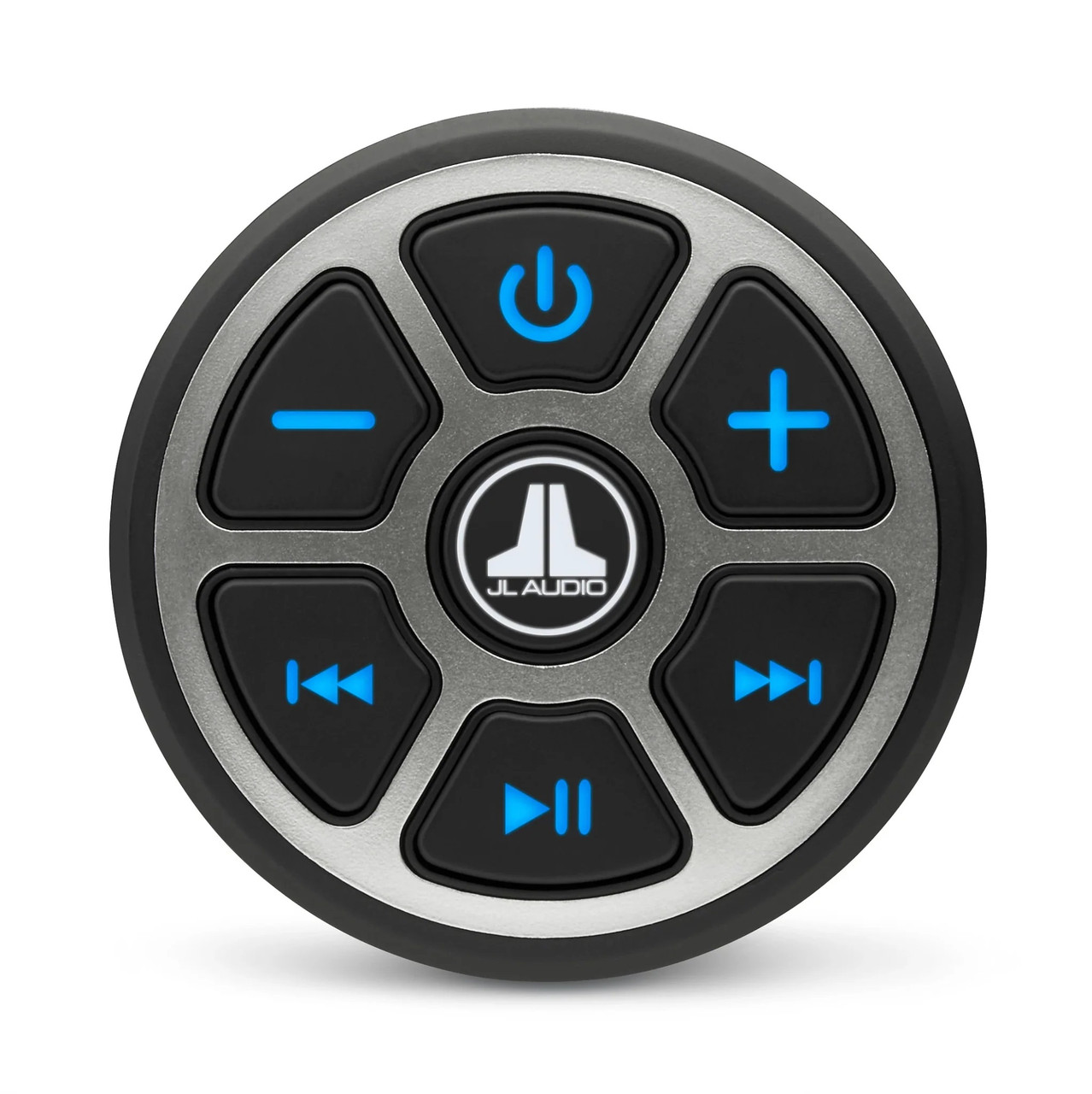

Jl Audio MBT-CRXv3 Water-resistant Audio Controller and Receiver with Bluetooth® Wireless Technology
Model: MBT-CRXv3Engineered for marine, motorsports and outdoor applications, the MBT-CRXv3 wireless receiver is designed to deliver top-quality streaming audio to almost any sound system over land or water.
Housed in a compact and water-resistant chassis (IP67-rated), this premium audio receiver is well suited for small watercraft, motorcycles, golf carts and utility vehicles. Needing just a single hole for installation, the MBT-CRXv3 wireless receiver can function as a stand-alone, wireless audio source unit or as an add-on, wireless audio controller and receiver. Large backlit controls permit easy operation day or night, and an adaptor plate is included for front-mount applications or where rear access is limited.
Outfitted with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, MBT-CRXv3 delivers dynamic, CD-like sound from your compatible streaming device from up to 35’ (11 meters) away. Two sets of stereo preamp outputs (4-volt RMS) are on hand to feed two main audio zones plus a dedicated subwoofer output. Independent audio zone level controls with LED color indicators ensure effortless command of your sound system while your streaming device is tucked away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications| General Specifications | |
| Bluetooth® Core Specification | Version 5.0 with Qualcomm® aptX™-HD audio |
| Current Draw | 83 mA (at idle) / 108 mA (at full output) |
| Input Operating Voltage | 8 - 16 VDC |
| Fuse Rating | 2A Mini ATC |
| Output Voltage | 4V RMS |
| Frequency Response | 20 Hz - 20 kHz (±1dB) |
| Connection Range* | Up to 35 ft / 11 m |
| S/N Ratio | 101 dB (20 Hz - 20 kHz) |
| Remote Turn-on Output Capacity | 350 mA (max) |
| Bluetooth® Profile | A2DP (High-Quality, Stereo Audio) |
| Outputs | Two Stereo Pairs Per Zone, Plus One Mono Subwoofer (RCA Plugs) |
| *Maximum range is achieved in line-of-sight installations. Actual range will vary based on installation specifics. | |
| Physical Specifications | |
| Diameter | 2.15 in / 55 mm |
| Mounting Depth (A) | 2.36 in / 60 mm |
| Mounting Hole Diameter | 1.125 in / 29 mm (minimum diameter for mounting with rear of panel access) 1.875 in / 48 mm (maximum for front mounting with plate) |
What's in the Box:
- MBT-CRXv3 Controller
- Locking collar
- 2.3mm spacer
- 1.27mm spacer
- Square bezel
- Square Gasket
- M4 x 16mm screw x 4
