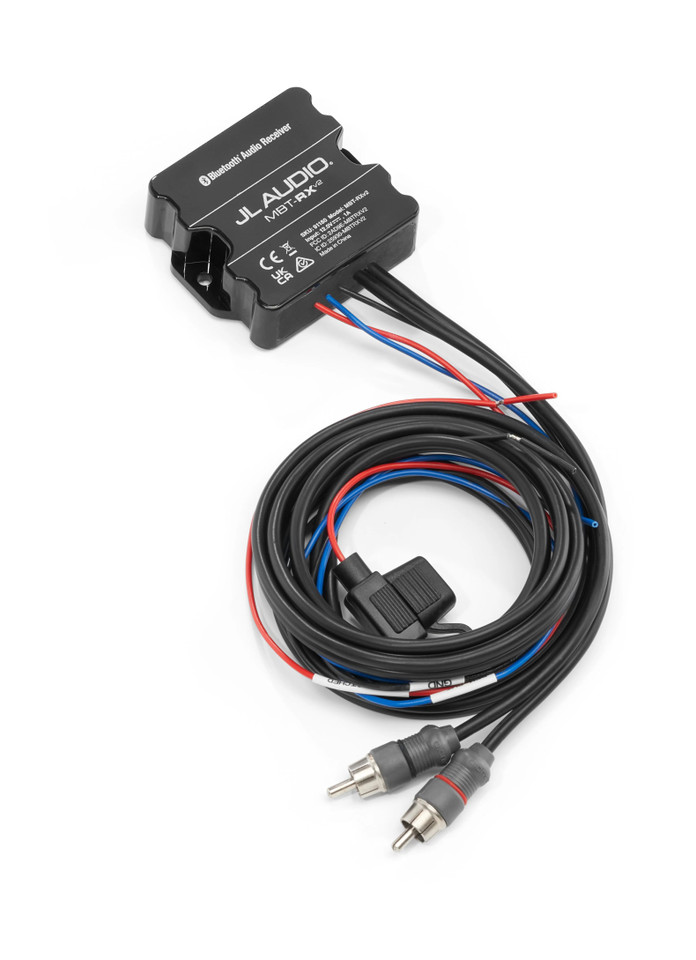

JL Audio MBT-RXv2 Water-resistant Audio Receiver with BLUETOOTH® Wireless Technology
Model: MBT-RXv2The MBT-RXv2 wireless receiver is designed to easily add high-quality streaming audio capability to virtually any sound system.
Equipped with BLUETOOTH wireless technology and the Qualcomm® aptX™ HD audio codec, the MBT-RXv2 wireless receiver sends top-quality sound directly to any amplifier or source unit with line-level inputs via a pair of crystal-clear preamp outputs (4-volt RMS).
Housed in a sealed and water-resistant (IPX7-rated) chassis, this premium audio receiver is ideally suited for challenging outdoor applications, plus its tiny design can easily fit in almost any installation location. A simple procedure is all it takes to pair MBT-RXv2 to your device, with automatic reconnection afterward. All playback, including volume and media selection, is controlled by using your compatible streaming device from up to 35’ (11 meters) away.
The receiver includes +12-volt (1 amp) remote turn-on output for amplifier control.
Specifications| General Specifications | |
| Bluetooth® Profile | A2DP (High-Quality, Stereo Audio) |
| Bluetooth® Core Specification | Version 5.0 with Qualcomm® aptX™-HD audio |
| Frequency Response | 20 Hz - 20 kHz (±1dB) |
| Outputs | One Stereo Pair, Low-Level RCA Plugs |
| Output Voltage | 4V RMS |
| S/N Ratio | 100 dB (20 Hz - 20 kHz) |
| Input Operating Voltage | 10 - 16 VDC |
| Current Draw | 40 mA |
| Fuse Rating | 2 A Mini ATC |
| Connection Range* | Up to 35' / 11 m |
| *Maximum range is achieved in line-of-sight installations. While the receiver can be mounted in a hidden location, actual range will vary based on installation specifics. | |
| Width | 2.64 in / 67 mm |
| Height | 2.28 in / 58 mm |
| Depth | 0.79 in / 20 mm |
What's in the Box:
- MBT-RXv2 Bluetooth Receiver
