KVH TracPhone LTE-1 Global
Model: 01-0419-01- Blazing fast onboard connections with no throttling thanks to LTE Advanced (LTE-A) enhanced technology
- High-gain, dual antenna for higher speeds and service up to twice as far offshore than with a personal cell phone
- A worldwide $99/month data plan with overage at the same reasonable prices per GB (per GB price varies by country)
- Customizable email usage alerts
- Ease of an end-to-end solution from the world’s leader in maritime broadband solutions
- Supports Wi-Fi calling for voice service on your cell phone farther offshore*
- Seamless service from regional and local LTE cellular services around the globe
TracPhone® LTE-1 Global is an ultra-compact, marine-grade system that includes everything you and your business need to head offshore. With simple plug-and-play installation and operation, the TracPhone LTE-1 Global provides secure Wi-Fi built into the antenna, multi-device connectivity, and easy network management. TracPhone LTE-1 Global simply gives your crew and business more of what you need:

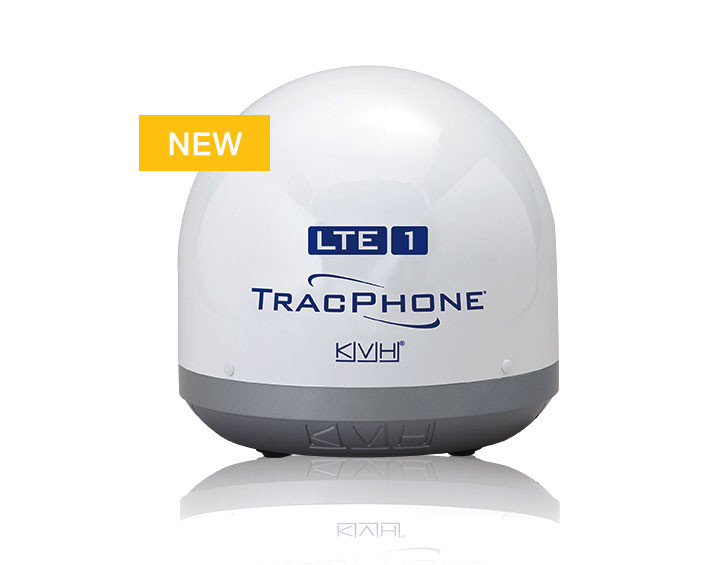

TracPhone LTE-1 Global is an ultra-compact, marine-grade system that includes a high-gain, dual LTE-A antenna array, modem, GPS, and Wi-Fi router in the dome.
The TracPhone LTE-1 Global offers broadband connectivity as far as 32+ km (20+ miles) offshore. LTE coverage is available in more than 150 countries with more than 150 carriers.*
TracPhone LTE-1 Global offers easy access to the built-in Wi-Fi router to configure the Wi-Fi network and the system's IP-address.
Specifications| Service | |
| Network | LTE-A/LTE/HSPA+/3G |
| Antenna Type | 2x2 MIMO/High-gain diversity antennas |
| Wi-Fi Type and Output | IEEE 802.11n/g Wi-Fi; 72 Mbps max |
| Maximum Network Speed | LTE-A (where available) |
| Service Coverage Area | Worldwide (see kvh.com/LTEglobalzones for available countries) More than 32+ km (20+ miles) from nearest tower when mounted >6 m (20 ft) above waterline with unobstructed line-of-sight |
| Hardware | |
| Antenna Diameter x Height | 34.3 cm x 33.8 cm (13.5" x 13.3") |
| Antenna Weight | 2.8 kg (6.25 lbs) |
| Antenna Operating Temperature | -25°C to +55°C (-13°F to +131°F) |
| Antenna Survival Temperature | -25°C to +70°C (-13°F to +158°F) |
| System Power | 9-36 VDC, 4 watts nominal, 12 watts max |
| Cabling | 1 Power/data cable: Cat 6 double shielded 15 m (50') cable included |
| Belowdecks Equipment | Power-over-Ethernet (PoE) Injector w/ 3 m (10') power cable and built-in Ethernet output port |
| Belowdecks Equipment Length x Width x Height | 9.7 cm x 7.9 cm x 3.6 cm (3.8" x 3.1" x 1.4") |
| Belowdecks Equipment Weight | 0.14 kg (0.3 lbs) |
What's in the Box:
- LTE-1 Global Antenna
- POE Injector
- 10 ft (3 m) power cable
- 50 ft (15 m) Ethernet cable
- 10 ft (3 m) ground wire
- Hardware
- Documentation
