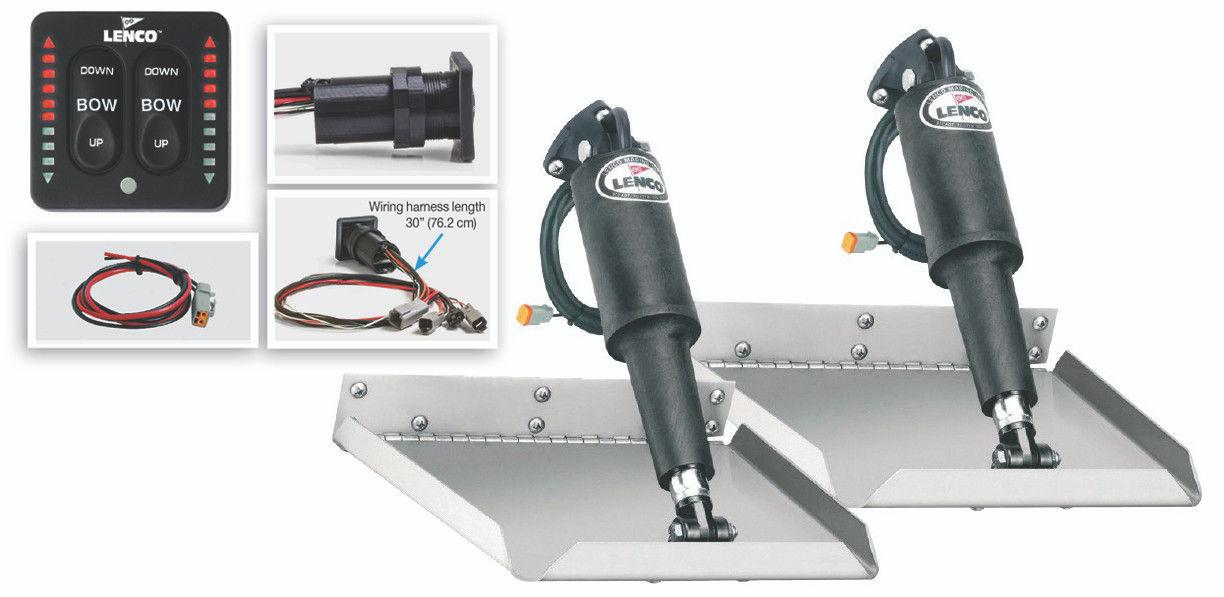

Lenco 12"x12" Edge Mount Trim Tab Kit 12v with LED Integrated Switch
Model: 15110-103Everything you need in one box! The Edge Mount trim tab kit with the added benefit of having the NEW integrated switch choice & power connector all included. Boat lengths 17’ (5.2 m) to 30’ (9.1 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1" (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8" (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal. Switch included.
What's in the Box:
- (2) 12-gauge stainless steel standard finish blades
- (2) 15054-001 actuators with 6’ (1.8 m) leads and Deutsch connectors
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 30133-103 actuator extension wiring harnesses - 20’ (6.1 m) length
- (2) 50014-001 lower mounting brackets
- Lenco owner’s/installation manual
- Stainless steel mounting hardware
- LED Integrated Switch
