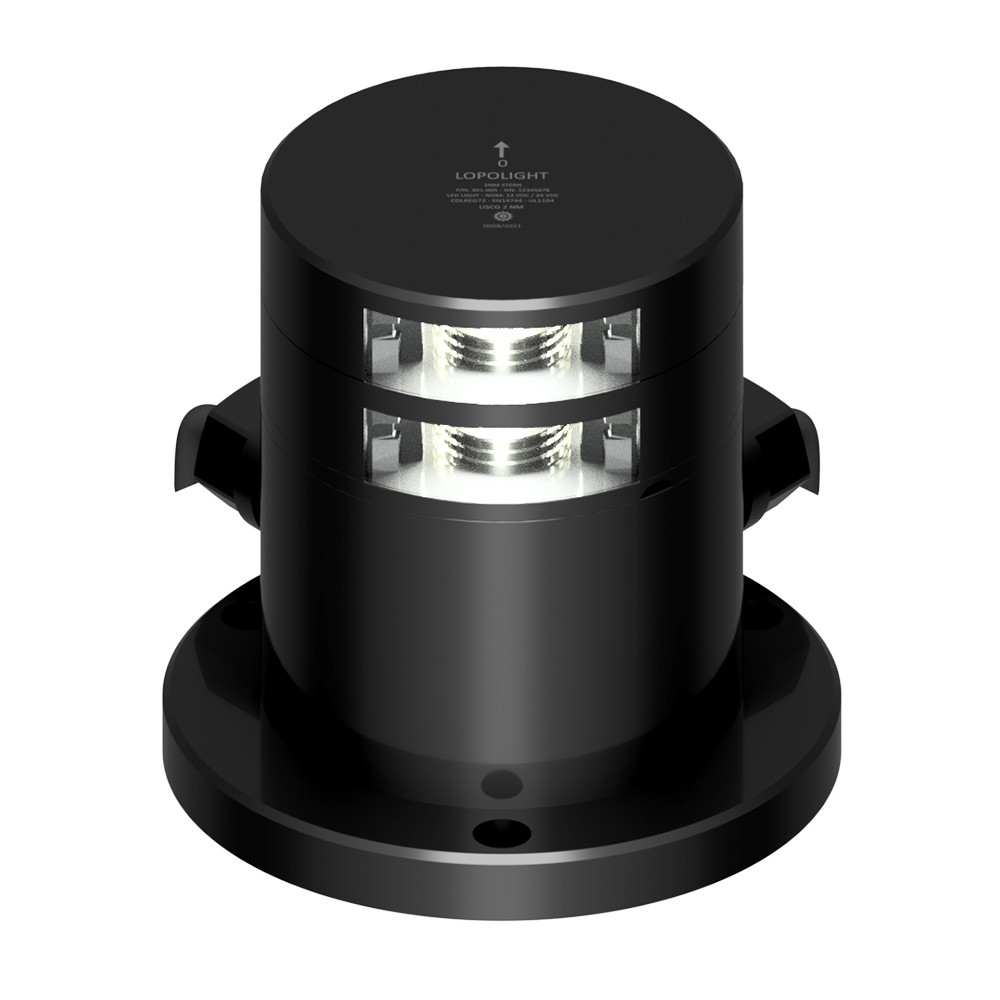

3nm Double Stacked Ice-Class Stern Light - Black
Features:
- Built-in De-icing function
- Horizontally mounted on 400-037 alu base (IP68)
- Cable direction side
- Includes HDPE base plate
- Quality cable glands - 3 sizes included:
- 9-17mm (3/8"-11/16") cable diameter
- 7-13mm (1/4"-1/2") cable diameter
Specifications:
- Light Color: White
- Dimensions metric: Ø92,5mm x 125,5mm
- Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support<
- Intensity: >15cd
- Dimensions imperial: Ø3.6" x 4.9"
- Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Visibility: 3nm
- Included In Package: 1 Navigation light,2 Mounting screws (M6 * 8 mm), Installation guide
- Operating temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- IP rating: IP68
- Power draw (W): 2W (normal), 19W (in de-icing mode, light on)
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 130
- Current consumption (mA @ 24VDC): 72
- Vessel size: Over 50M
- Min. feed wire gauge: 1.5mm2 AWG18
- Weight (Kg): 1.4 Kg
- Weight (Oz): 49.38 Oz
