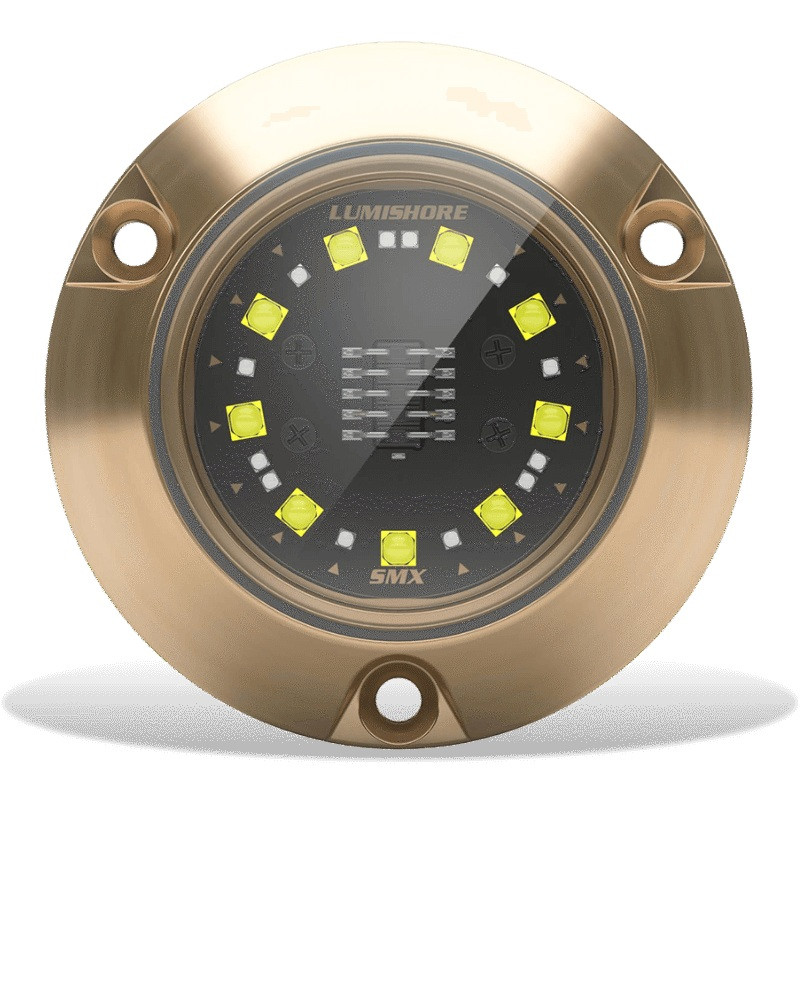

Lumishore ECLIPSE SMX24 Surface Mount Blue LED
Model: 60-0531 / 010-04501-00Specifically designed for smaller boats, the SMX24 - Blue offers unmatched light output and optics for a light of its compact size. Flooding the water with 3,100 fixture lumens of light in a 90° beam.
It's built-in driver and simple 2-wire connections make the installation of this light easier than ever.
Suitable for stepped hulls, transoms, and hull side installations.
Controlled by an ON/OFF switch or the ECLIPSE Command Center.
Specifications| COLOR | BLUE |
| LUMENS | 6,975 |
| VERIFIED FIXTURE LUMENS (WHITE) | 3,100 |
| NUMBER AND TYPE OF LEDS | BLUE 12X3W |
| LED POWER - HICOB ARRAY | YES |
| TYPICAL LED LIFE | 50,000+ HOURS |
| BEAM ANGLE (DEGREES) | 90° |
| DRIVER | MULTI-CHANNEL INTERNAL DRIVER |
| SUPPLY VOLTAGE (12 V DC ONLY) | 10.5—14.5 V DC |
| MAX CURRENT DRAW | 2.5A |
| HOUSING TYPE | MARINE BRONZE BODY/ GLASS LENS |
| USER CONTROL OPTIONS | STANDARD ON/OFF SWITCH OR ECLIPSE COMMAND CENTER |
| DIMMING CONTROL | YES |
