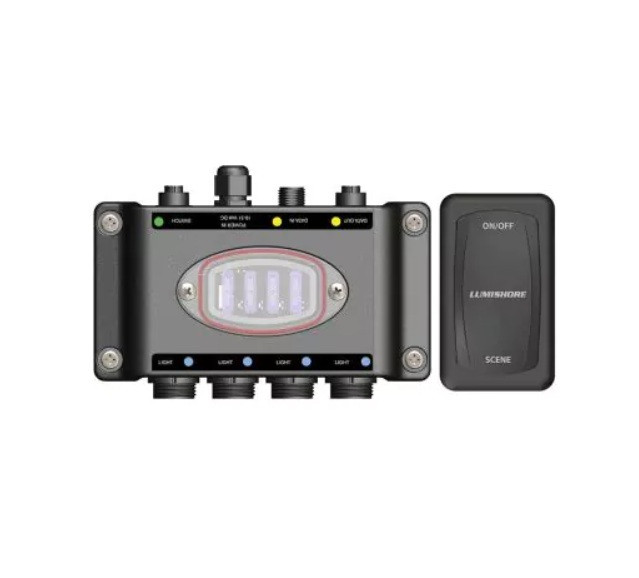

Lumishore SUPRA THX/TIX i-Connect Install Kit
Model: 010-04358-00- Full control via certified MFD or EOS-LUX-SUPRA Display
- Specially Designed for Ease of Installation
- Plug and Play Connections
- IP68 Field Installable Connectors (supplied)
- Built-in Switching Power Relay
- Replaceable Blade Fuse For Each Light
- Status Indication LED for Each Light
- Built-In Noise Filter
The SUPRA Installation/Upgrade Kit enhances the function of your Dual Color SUPRA lights.
It’s plug-and-play junction box makes for easy installation and includes the fuses and easy-connect terminals for the lights and the switch.
This kit is required for all underwater TIX/THX models and optional for the SMX53.
Specifications| Number of Lights per Hub | 4 |
| Max Number of Hubs per Installation (Surface Mount) | 4 Hubs (16 Lights) |
| Connections | SMX - Field Installable Connector (supplied with Hub) |
| Fuses | Replaceable Blade Fuses. Each Light Individually Fused |
| Status Indication LEDs | Yes — for Each Light |
| Voltage Range | 10.5 — 31V DC |
| Max Input Current | 40 A |
| Max Output Current (i.e., Max Current Per Light) | 10 A |
| Cable Entry / Exit | IP68 Connections |
| Switching Method | Built-in Relay |
| Noise Suppression | Built-in Noise Filter |
| Reverse Polarity Protection | Yes |
| Lumi-Link Compatible | Yes |
