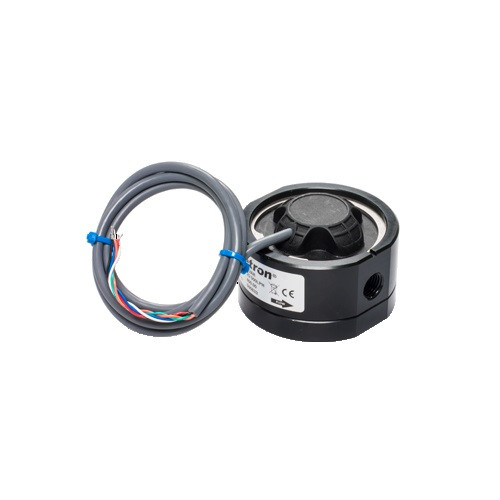

Maretron M2AR Fuel Flow Sensor
25 to 500 LPH (6.6 to 132 GPH)
Model: M2ARUPC: 873804003535
For use with Maretron FFM100 Fuel Flow Meter
Specifications| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -65°C to 170°C (-85°F to 338°F) |
| Port Size | 1/4" NPT Female |
| Accuracy % Reading | ±0.25% (With K factor on sensor entered into FFM100) |
| Maximum Viscosity | 1000 cPs |
| Maximum Operating Pressure | 68.95 Bar (1000 PSI) |
| Strainer Size | 200 Mesh (If not already installed after fuel filter) |
| Cable Length | 1m (3.28 ft) |
| Weight | 1.66lbs |
| Dimensions | 2.91" x 2.80" x 1.91" |
