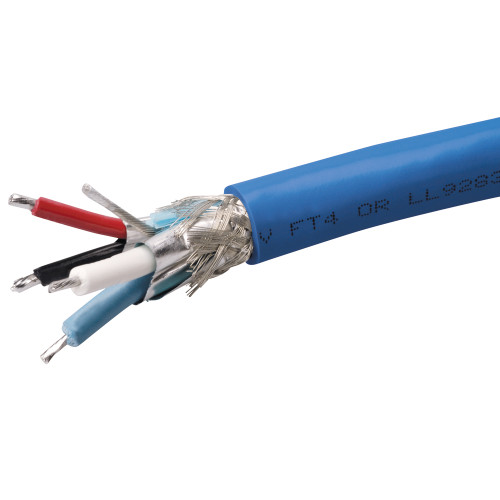

Maretron Mini Bulk Cable - 100 Meter - Gray
Specifications
Overall
Outer Jacket Mat/Color:PVC/Blue - NB1, PVC/Gray - NG1
Insulation Material: PE (data), PVC (power)
Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)
Power Pair
Wire: 2x15 (1.45mm) AWG
Resistance/Conductor: 3.44 Ohms/1000 ft max
Max Amperage: 16 Amps - NB1, 14 Amps - NG1
Color Code: Red/Black
Data Pair
Wire: 2x18 (1.02mm) AWG
Characteristic Impedance: 120 Ohms +/- 10%
Capacitance: 12 pF/1000 ft Max
Color Code: White/Blue
Approvals
UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 APPROVED
IEC: IEC-61162-3
