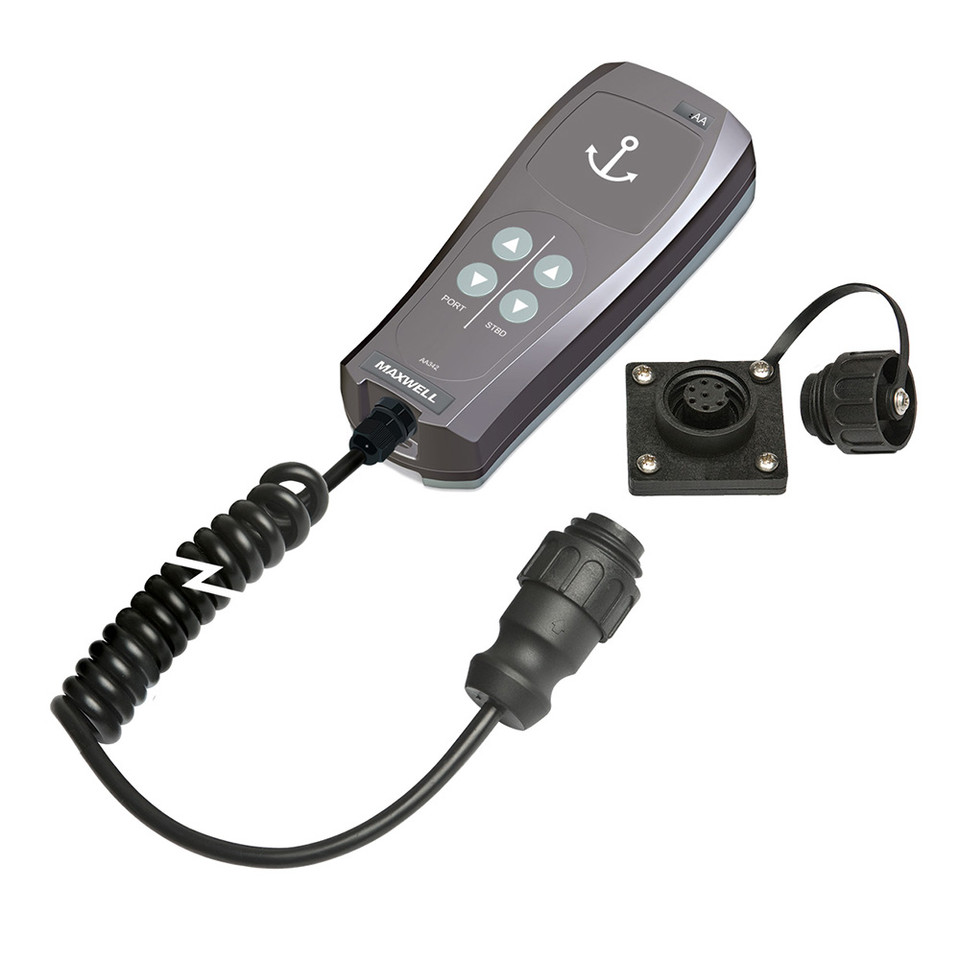

AA342 Remote for Dual Windlasses - 4 Outputs
This is a handheld wired roving dual windlass controller. The remote has 4 outputs unit that can be installed to meet your specific requirements.
Features:
- 2 buttons up and 2 buttons down Designed for dual windlass control
Specifications:
- Maximum Operating Voltage: 25V AC (RMS) / 30VDC
- Contact Current Rating: SA Resistive Load / 3A Inductive Load
- Operating Temperature Range: -15° C to 70° C (23° to 140° F)
- IP Rating1: IP67
- Dimensions Handset (HxWxD): 5.92" X 2.53" X 1.87'' (150.36 mm x 64.37 mm x 47.42 mm)
- Standard Cable Extension: 11.5 ft / 3.5 m
- Flying Lead from Deck Socket: 6.5 ft. / 2 m
