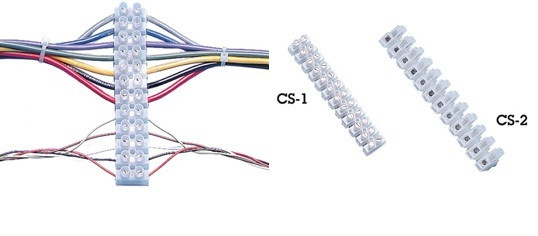

- Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
- Strips are easily cut to meet wiring requirements and space limitations.
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps* | Size |
| L X W X H | ||||
| CS-1 | 12 | 16 | 6 | 3.75" x .675" x .5" |
| CS-2 | 12 | 14 | 10 | 4.5" x .75" x .75" |
