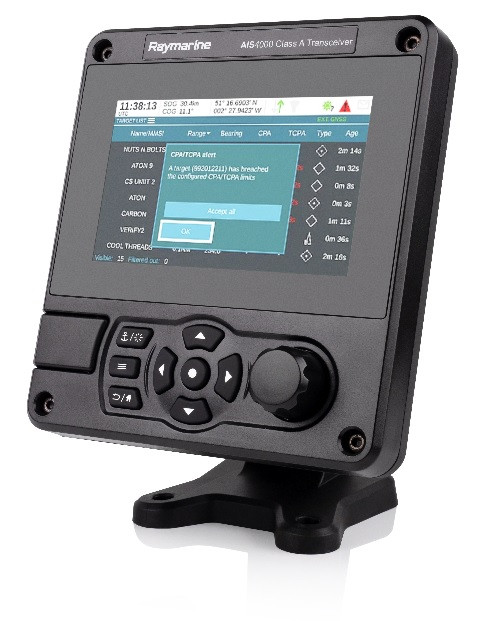

Raymarine AIS4000 Class A AIS
Model: E70601Designed for commercial vessels, luxury yachts, and SOLAS high-seas shipping, the AIS4000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and is engineered to withstand the harsh weather, shock, and vibration of any vessel class.
The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms, and tracking. Additional support for wired and wireless networking with shipboard systems make AIS4000 a premier SOLAS and Inland Waterway-certified Class A transceiver.
Specifications| Physical | |
| Dimensions | 152 mm 165 mm 70 mm |
| Weight | 1 kg |
| Electrical | |
| Power supply | 12 to 24 VDC |
| Power consumption | 0.5A at 12v (6W) |
| Connectors | |
| VHF antenna connector | Yes |
| GNSS antenna connector | Yes |
| Power | Two-pin connector (cable provided) |
| Serial interfaces and alarm relay | 18-pin connector (cable provided) |
| Serial inputs | 14-pin connector (cable provided) |
| NMEA 2000 | NMEA 2000 micro connector |
| Data Interfaces | |
| NMEA 0183 (IEC61162-2) bi-directional ports | 3 |
| NMEA 0183 (IEC61162-1) bi-directional ports | 3 |
| DGPS correction data input (ITU-R M.823-2) | 1 |
| Alarm relay output | 1 |
| NMEA 2000 | 1 |
| Wi-Fi | 802.11 b/g/n |
| Pilot Port | 1 (optional) |
| Standards Compliance | |
| AIS standard | IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0 |
| Serial data interface standards | IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2 |
| Environmental Standard | IEC 60945 Ed 4.0 |
| GNSS performance standard | IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0 |
| Product safety | IEC 60945 Ed 4.0 |
| VHF Transceiver | |
| Transmitter | 1 |
| Receiver | 3 |
| Frequency | 156.025 MHz to 162.025 MHz |
| Output Power | 1 W or 12.5 W (automatic) |
| Channel Bandwidth | 25 kHz |
| Channel Step | 25 kHz |
| Modulation Modes | CMSK-TDMA |
| Bit Rate | 9,600 bits/sec |
| Receiver Sensitivity | -107 dBm @ 20% PER |
| GNSS Receiver and Transceiver | |
| Channels | 72 |
| GNSS systems | Supports parallel dual mode operation from GPS, GLONASS, and BeiDou |
| IEC61108-1 | Compliant |
| IEC61108-2 | Compliant |
| GNSS antenna | Supplied |
| User Interface | 5" 800 480 full color LCD display |
| Environmental | |
| Waterproof | IPx6 and IPx7-rated for water ingress |
| IEC 60945 | ‘Protected’ category |
| Operating Temperature | -15°c to +55°c |
What's in the Box:
- AIS4000 Bundle
- GNSS Antenna
- Power Cable
- 2 x Data Interface Cables
- Fixings Pack
- DeviceNet to STNg Cable
- Manual
- Warranty Card
- Mounting Template
- Quick Start Guide
