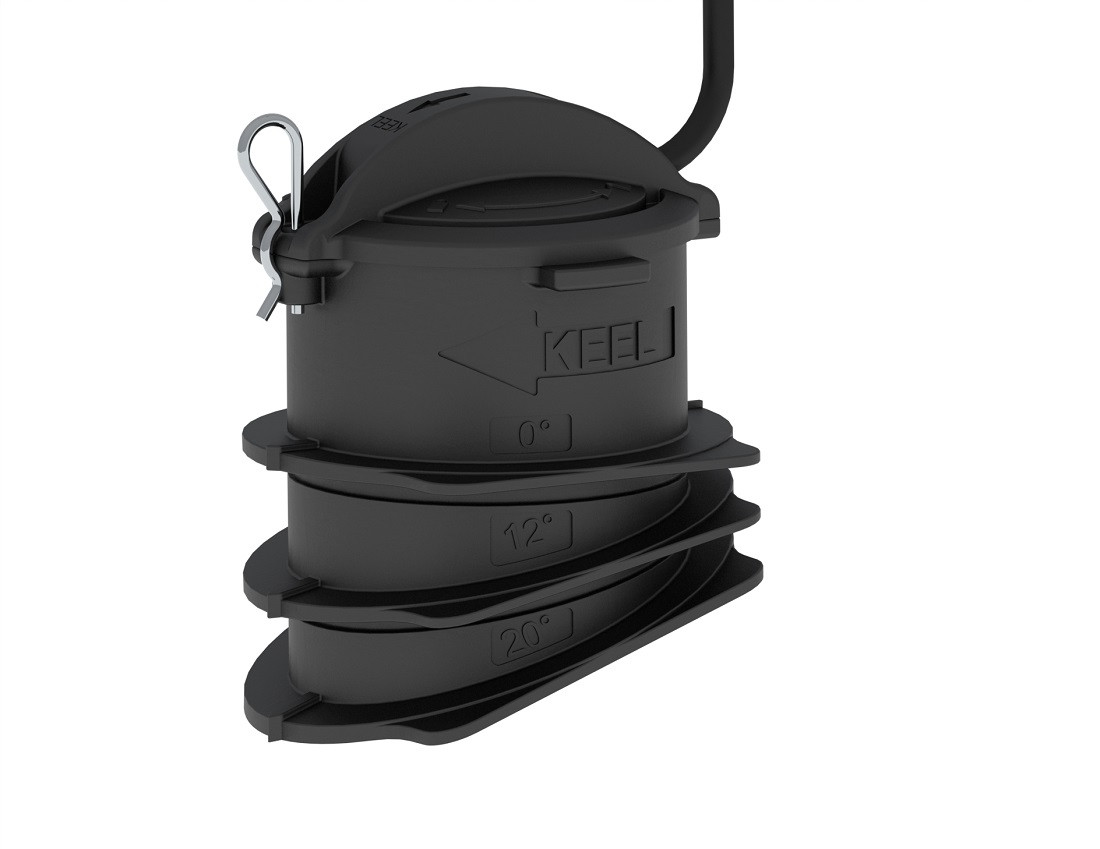

Raymarine CPT-S In-Hull Transducer
Model: A80691The CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP operation centered on 200kHz. The CPT-S in-hull directly connects to Element S and connects to Axiom RV, Axiom Pro, and Element HV using the A80490 or A80559 adapters, respectively. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.
The CPT-S In-hull is designed for glue-in installation on vessels with non-cored fiberglass hulls. A cut-to-fit transducer housing allows the transducer to readily adapt to hulls with deadrise angles between 0° and 25°.
The CPT-S In-Hull transmits in the High CHIRP band for reliable depth recording, fish targeting, and bottom density. Pair the CPT-S In-hull with a Raymarine MFD for general navigation and scouting anchoring locations.
In-hull transducers offer reliable depth performance at cruising-speeds. The CPT-S In-hull accommodates RIBS, trailer boats, and applications where drilling through the hull or mounting to the transom is not practical.
Specifications| Sonar Type | CHIRP |
| Frequency | High CHIRP 170 — 230 kHz |
| Hull compatibility | Solid, non-cored fiberglass hull |
| Deadrise Adjustments | 0°, 12° or 20° |
| Depth Range | Up to 600 feet |
| Cone Angle | 25° |
| Cable length | 6 meters |
| MFD COMPATIBILITY | |
| Axiom, Axiom+ | Direct connection to Axiom 7 DV. Use the A80490 adaptor for connection to Axiom RV and Axiom+ RV |
| Axiom Pro | Use the A80490 adaptor for connection to Axiom Pro S, Axiom Pro RVX and the RVX1000 |
| Element | Direct connection to Element S. Compatible with Element HV using the A80559 adaptor |
| Other/legacy | Direct connection to DownVision variants of aSeries, eS Series, and CP100 Sonar modules |
What's in the Box:
- In-Hull Transducer Tube
- In-Hull Transducer
- R-Clip
