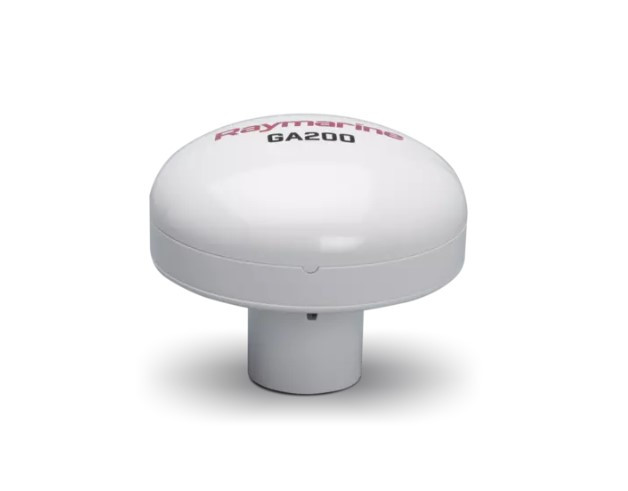

Raymarine GA200 GPS Antenna For AIS4000/5000
Model: A80589- 10 m (33 ft.) fitted cable
- Low power consumption
- Surface or pole mountable
The GA200 is an external antenna, suitable for improving the reception of the internal GPS/GNSS receivers of compatible Raymarine chartplotters, AIS devices, and VHF radios.
Compatible Chartplotters and multifunction displays: Axiom Pro/Axiom 2 Pro Axiom XL eS97/eS98/eS127/eS128 a95/a97/a98/a125/a127/a128
Compatible AIS Receivers: AIS5000 AIS4000 AIS700 AIS350/AIS650
Compatible VHF radios: Ray90/Ray91 Ray63/Ray73 Ray53
Specifications| PHYSICAL | |
| Diameter | 85 mm (3.35 in) |
| Height (including pole mount adaptor) | 70 mm (2.76 in) |
| Height | 34 mm (1.34 in) |
| Unboxed weight (including cable) | 0.5 Kg (1.1 lbs) |
| ENVIRONMENTAL | |
| Waterproof rating | IPx6, IPx7 |
| Storage temperature range | -30°C to +70°C (-22°F to +158°F) |
| Operating temperature range | 0°C to +55°C (+32°F to +131°F) |
| Relative humidity | 0.95 |
What's in the Box:
- GNSS antenna, with captive cable 10m (33 ft).
- Antenna pole mount adaptor
- Antenna gasket
- Antenna fixings (3 x M3x40 stud and thumb nut)
