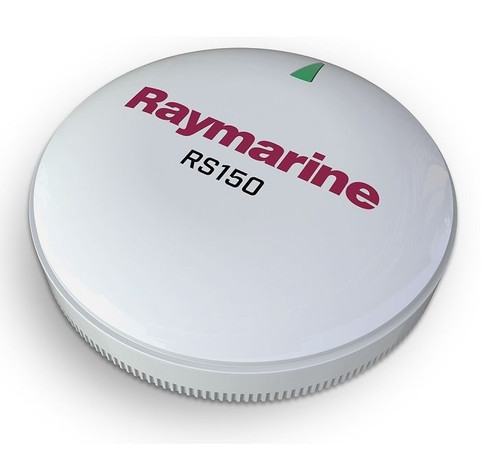

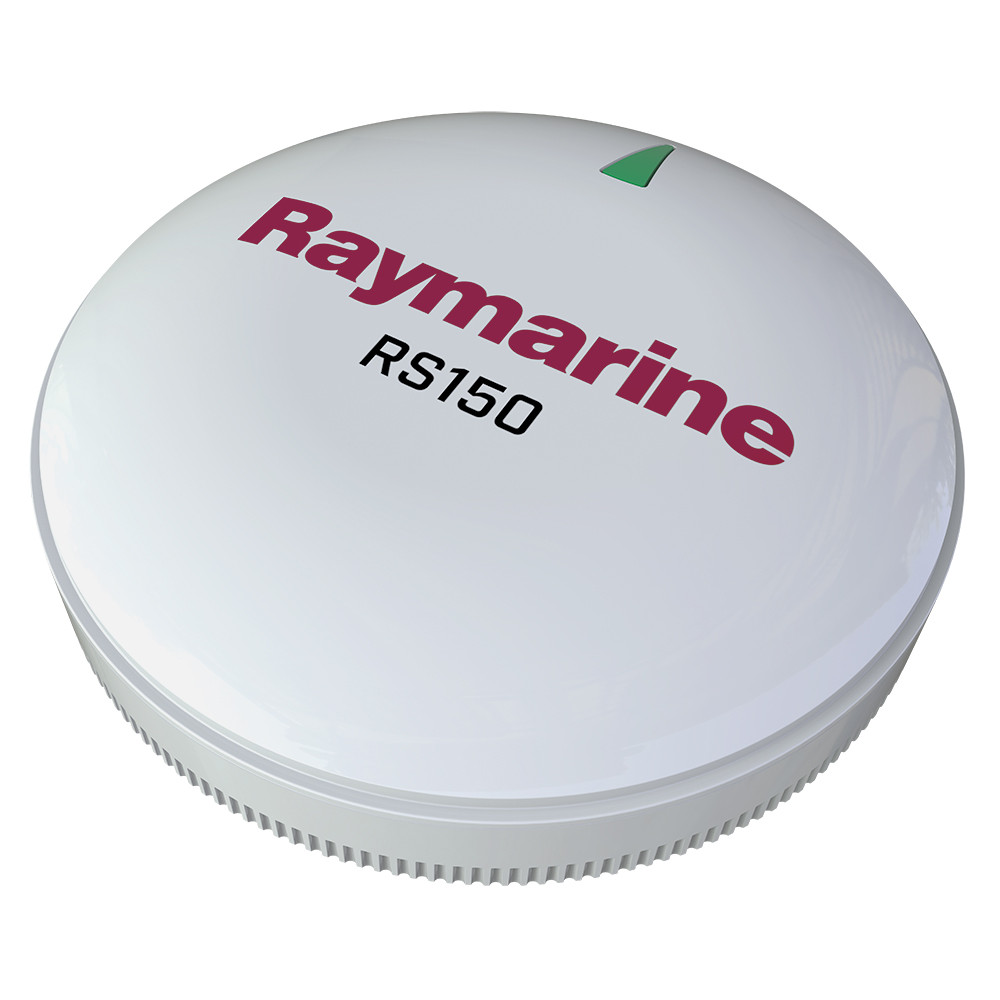

RS150 GPS Sensor
The RS150 GPS is a high performance, 72-channel, remotely mounted GPS sensor for Raymarine navigation systems. The RS150 offers fast 10Hz position updates and enhanced accuracy. The RS150 is also a GNSS receiver and supports the GLONASS global navigation satellite system.
Features:
- 72-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
- A GNSS receiver with GLONASS compatibility
- Low power consumption: 30mA (1 LEN)
- SeaTalkng and NMEA2000 compatible (using a device net adapter cable)

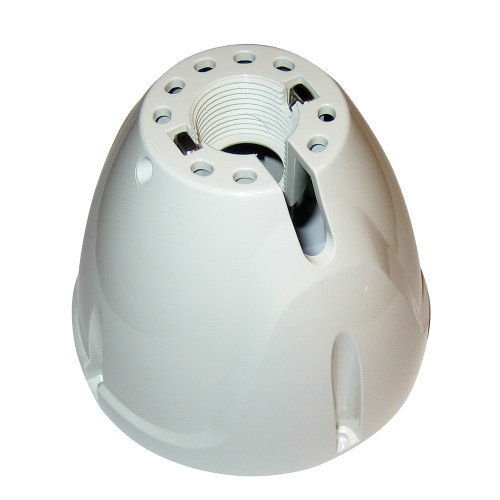

- Designed for low profile surface mounting or optional pole mounting
Specifications:
- Nominal supply voltage: 12V D.C. Powered by N2K bus
- Operating voltage range: 8 - 32V DC
- Power consumption: 30 mA max (NMEA LEN = 1)
- Operating temperature: -13ºF to 131ºF (-25ºC to +55ºC)
- Relative humidity: max 93%
- Waterproof: IPx6/7
- Supported connection protocols: SeaTalkng: NMEA 2000 (certified) (via DeviceNet adaptor)
- Sensitivity: High sensitivity - acquisition down to -163dBm
- No. of channels: 72
- Positioning System: GPS & GLONASS
- Satellite Differential Type: WAAS (United States); EGNOS (Europe); MSAS (Japan); GAGAN (India)
- Differential acquisition: Automatic
- Position accuracy (95%): <15M
- Position accuracy with SDGPS (95%): <5M
- Speed accuracy (95%): <0.3kt
- Time to first fix from cold start: <2 minutes (< 45 seconds typical)
- Time to first fix from hot start: < 8 seconds -72 hour hold up battery allows for hot start
- Geodetic Datum: WGS84
