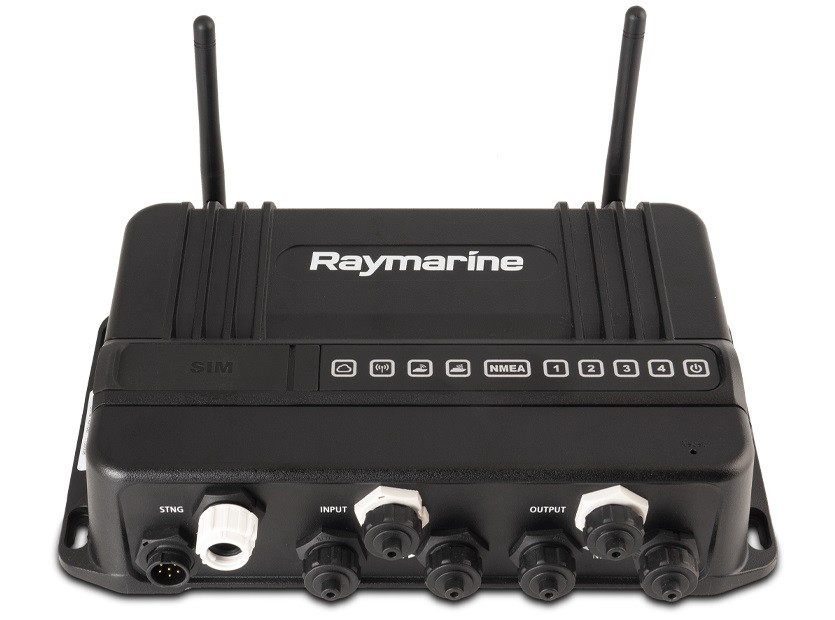

Raymarine Yachtsense Link Marine Mobile Router
Model: E70640- REMOTE MONITORING
- ALWAYS CONNECTED
- STAY INFORMED
YachtSense Link is a multi-purpose marine mobile router equipped with Raynet Ethernet ports, mobile broadband connectivity, and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets, and PCs to a unified onboard network. YachtSense Link automatically switches between marina Wi-Fi and mobile networks to ensure you are always connected. Combine YachtSense Link with the Raymarine mobile app for remote access to your Raymarine network and enjoy the added security of remote GeoFence vessel monitoring. YachtSense Link also features low-voltage digital switching / monitoring channels for controlling and monitoring onboard electrical devices like pumps, batteries, lighting, and more.
Specifications| Power Specifications | |
| Nominal supply voltage: | 12 Vdc / 24 Vdc |
| Operating voltage range: | 8 Vdc to 32 Vdc |
| Environmental Specification | |
| Operating temperature range: | -25°C (-13°F) to + 55°C (131°F) |
| Storage temperature range: | -30°C (—22°F) to + 70°C (158°F) |
| Humidity: | up to 93% @ 40°C (104°F) |
| Water ingress protection: | IPx6 |
| Physical Specification | |
| Dimensions (w x h x d): | 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in) |
| Weight | 1.03 Kg (2.26 lb) |
| Wireless Network Specification | |
| Boat Wi-Fi: | Wi-Fi access point mode frequencies: 2.4 GHz (2412 MHz to 2472 MHz 2422 MHz to 2462 MHz): 13.28 dBm |
| Dock WLAN: | Wi-Fi station mode frequencie 2.4 GHz:(2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm 5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm |
| Cellular / Diversity: | 2G/3G/4G frequencie LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18 /B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
What's in the Box:
- YachtSense™ Link Marine Cloud Router (supplied with grounding point fixings and protective caps fitted).
- x4 mounting fixings (PA 4 x 25 mm self tapping screws).
- Documentation pack
- 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m (16.4 ft) cables and M20 nut and mounting gasket.
- x2 Dipole antenna (BOAT Wi-Fi).
- RayNet to RJ45 cable 1 m (3.3 ft).
- SeaTalkng® spur cable 1 m (3.3 ft).
- 8Power cable with 8 A fitted fuse 1.5 m (4.9 ft).
- x2 Input/Output (I/O) cables 0.5 m (1.64 ft).
