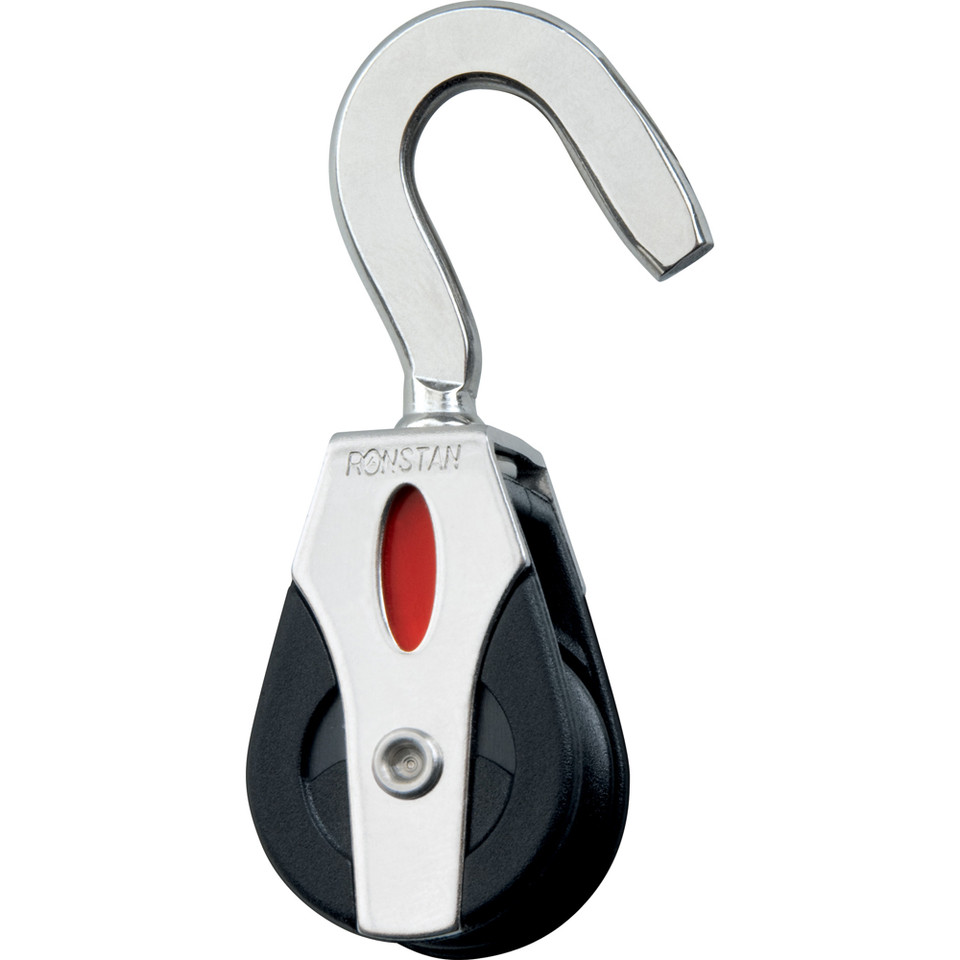

Series 20 Ball Bearing Block - Swivel Hook Head
Features:
Applications:
Materials:
Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
M.W.L.: 135kg(300lbs)
B. L.: 270kg(590lbs)
Weight: 21g(0.7oz)
Features:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Low profile swivelling hook for quick and easy attachment
- Hook suits rope, stainless steel and webbing fixing points
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
Applications:
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV Stabilized Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø: 20mm(3/4")
Max. Rope Ø: 6mm(1/4")
M.W.L.: 135kg(300lbs)
B. L.: 270kg(590lbs)
Weight: 21g(0.7oz)
