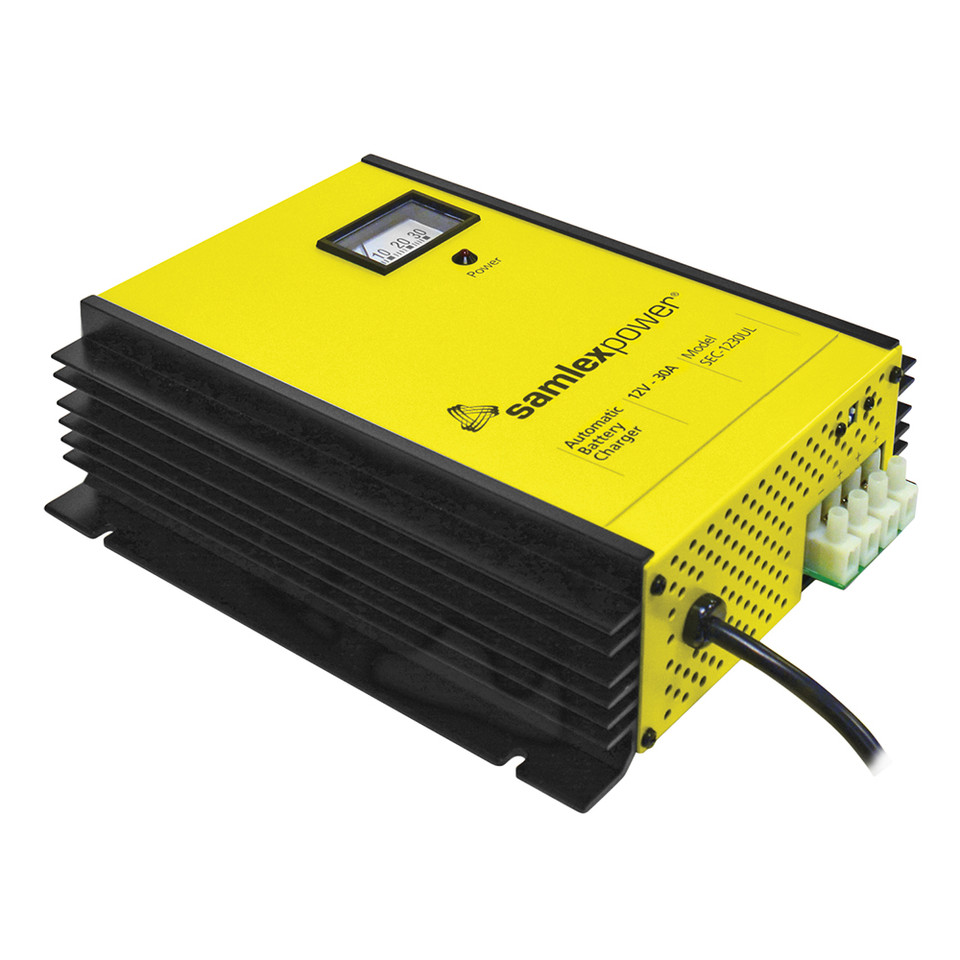

30A Battery Charger - 12V - 3-Bank - 3-Stage w/Dip Switch & Lugs
This advanced fully automatic three-stage 30 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 3 separate battery banks.
Features:
- High efficiency
- Commercial Grade
- Lightweight
- Quiet operation
- Industry Proven Design – 1000s of units in operation
- 2 or 3 stage charging (user selectable)
- 120 or 230 VAC, 50/60 Hz (user selectable)
- Voltage meter display – Ammeter and LED power status
- For all types of Lead Acid batteries
- Charge with a battery load or stand alone
- Use as a power supply or DC UPS
- UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
- Charge 3 banks of batteries at once – no isolator necessary
Specifications:
- Input: 120 VAC 60 Hz or 230 VAC 50 Hz
- Output: 12 VDC
- Amps: 30 Amps
- Weight: 7 (lbs)
- Weight: 3.17 (kg)
- Dimensions: 10.5 x 8.5 x 3 (in)
- Dimensions: 26.7 x 21.6 x 7.6 (cm)
- Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
- Warranty: 2 Year Limited
Applications:
- Automotive
- Recreational vehicles
- Marine
- Communications sites
- Battery back-up systems
