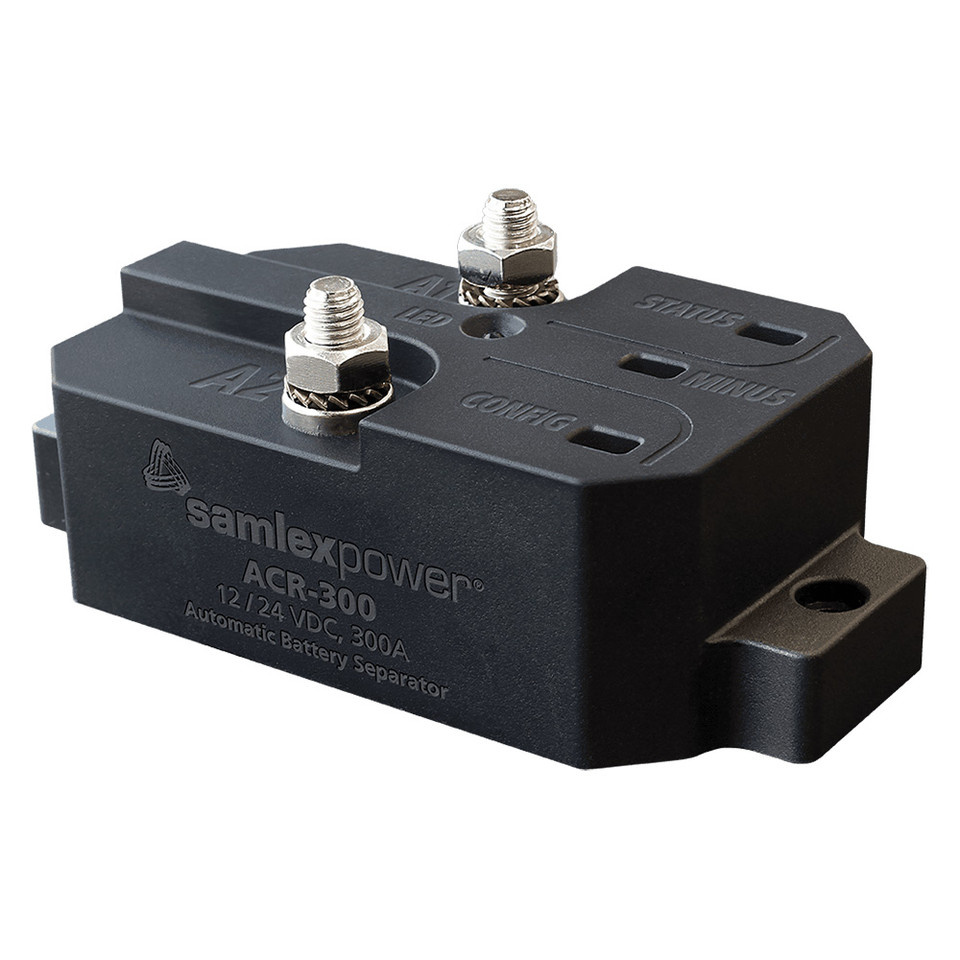

ACR-300 Automatic Charge Separator 300 AMP
The ACR-300 combines battery banks for charging and isolates them when charging has stopped. It provides priority for charging only the starter battery first and protects from excessive discharging of the starter battery. The Automatic Charge Separator is also referred to as a battery separator, battery isolator, or an automatic charging relay.
Features:
- Microprocessor-controlled, dual-sensing
- Starter battery priority
- Easy to install – does not require changing the existing circuit or the alternator
- Potted, waterproof, sealed unit
- Low standby current
- Automatic detection of 12 or 24 VDC systems
- 300 Amp continuous rated
- Over-voltage protection
- Built-in status LED
Specifications:
- Input: 12/24 VDC
- Output: 12/24 VDC
- Amps: 300
- Dimensions: 170 x 82 x 65 (mm)
- Dimensions: 6.69 x 3.23 x 2.56 (in)
- Weight: 1.97 (lbs)
- Weight: 0.895 (kg)
- 2 Year Limited Warranty
