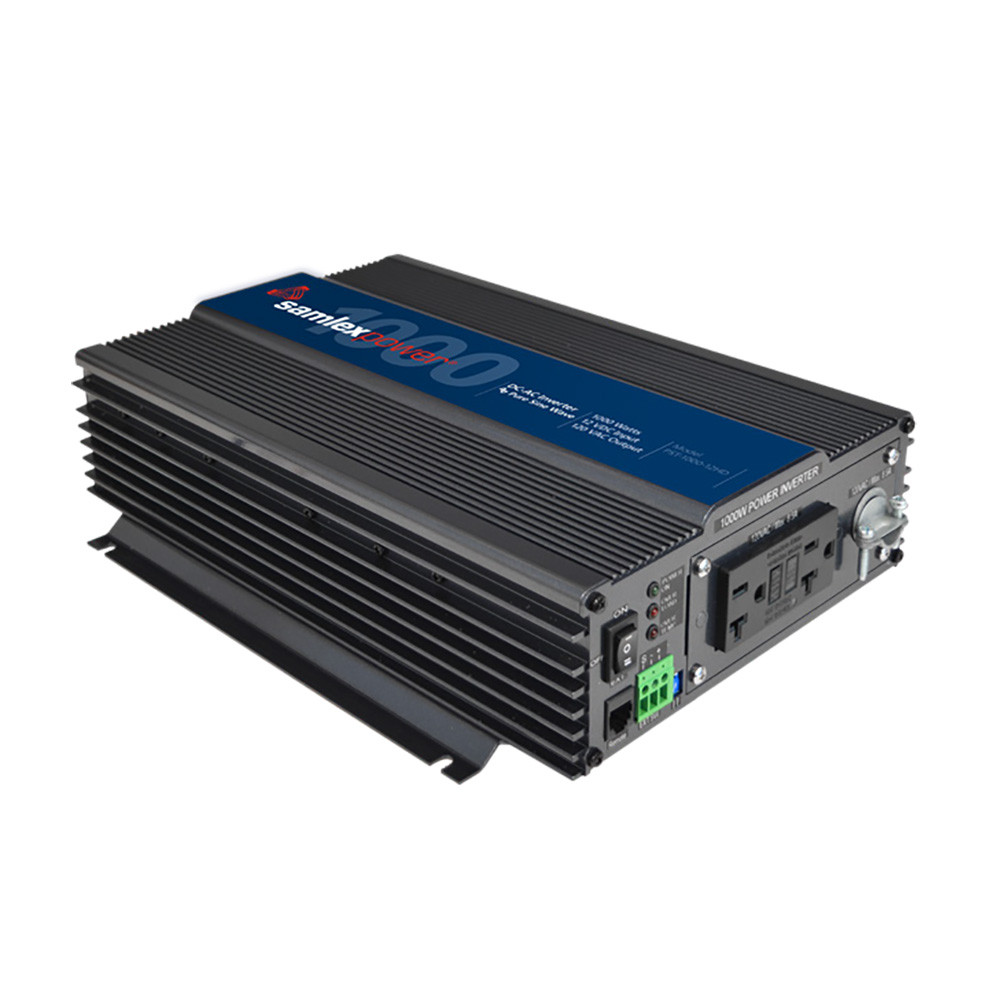

PST-1000-12HD Pure Sine Wave Inverter 12V Input 120 VAC Output 1000W
PST-1000-12HD is a pure sine inverter and features a hardwire connection for flexibility in installation, selectable low voltage shutdown (battery protection), and a low voltage alarm and alarm buzzer disable switch. PST-1000-12HD is user-friendly, easy to install, and has a small footprint. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
All Samlex PST series pure sine inverters are high-efficiency, offer quiet operation, low-idle power draw, GFCI-protected outlets, and a universal protection circuit – low voltage, over temperature, overload, and short circuit.
Features:
- Selectable low voltage shutdown settings
- Enable/ Disable Buzzer DIP Switch
- Low voltage alarm and alarm buzzer disable switch
- Commercial-grade, suitable for heavy-duty loads, long periods of continuous operation and emergency backup
- Hardwire connection for choice & flexibility in installation
- GFCI-protected AC outlets
- Compact design, ideal for small spaces
- Wide operating DC input range: 10.0 – 18.0 VDC
- Wide operating temperature range: -13°F to 131°F / -25°C to +55°C
- Ignition ON/OFF – 1 wire input
- Temperature-controlled cooling fan – reduces energy consumption
- Universal Protection Circuit – Low Voltage, Over Temperature, Overload, and Short Circuit
- Low idle power draw
- Optional remote control (sold separately): Model RC-15A
Specifications:
- Input: 12 VDC
- Output: 120 VAC
- Watts: 1000 Watts
- Surge: 2000 Watts
- Weight: 8.33 (lbs)
- Weight: 3.78 (kg)
- Dimensions: 13.11 x 9.37 x 3.23 (in)
- Dimensions: 333 x 238 x 82 (mm)
- Safety: ETL Listed. Conforms to UL Std.
- 3-Year Limited Warranty
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Fieldwork/Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
