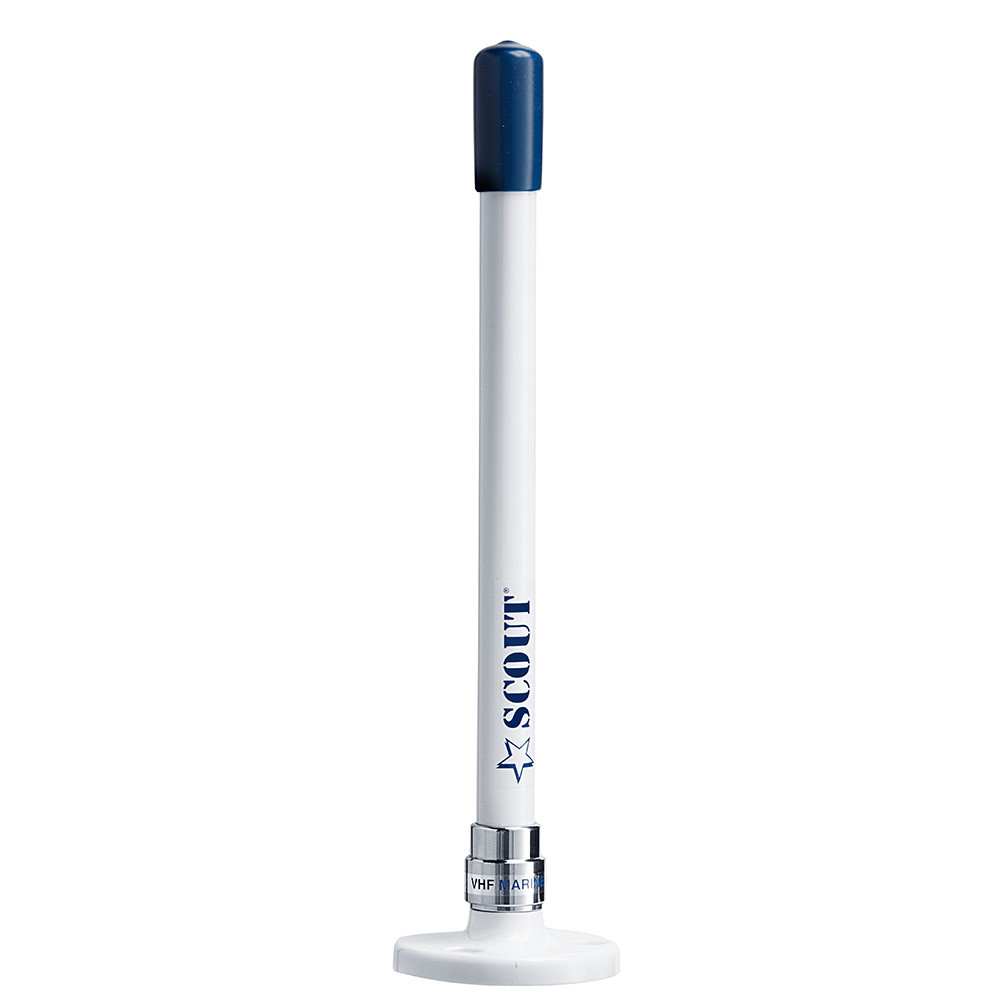

9" Stubby White VHF Antenna with Quick Mount Includes 5M RG-58, Mount & Integrated Connector KS-10
Fine technical construction, great design, and convenient size all in one: this is the new KS-10, the short, removable VHF antenna that many boaters have been asking for. With its total length of only 22 cm (9”), the KS-10 is the shortest VHF antenna of the Scout range; moreover, the whip can be easily removed by hand to facilitate trailering, coverage, and storage. The anti-UV filter avoids the deterioration of the coloring and keeps the antenna bright white.
The mount of the KS-10 (6 cm diameter) has been designed to allow an easy and quick installation on any type of flat surface, and the inner rubber gasket prevents leakage.
The antenna is supplied together with a 5 m (16’) RG-58 coax cable and PL-259 male connector.
Features:
- 100% waterproof antenna
- The fiberglass whip is easy to remove
- Waterproof mount included
- Fiberglass whip with anti-UV filter
- 22 cm length
- 5 m (16′) RG-58 CU MIL coaxial cable
Specifications:
- Frequency: 156-162 MHz
- Impedance: 50 ohms
- V.S.W.R.: < 1,5:1
- Polarization: Vertical
- Gain: Unity Gain
- Max power input: 50W
- DC ground: Yes
- Whip material: Fiberglass
- Cable: 5 m (16′) RG-58 CU MIL
- Mounting: Waterproof mount included
- Length: 22 cm (9″)
- Weight: 0,10 kg
