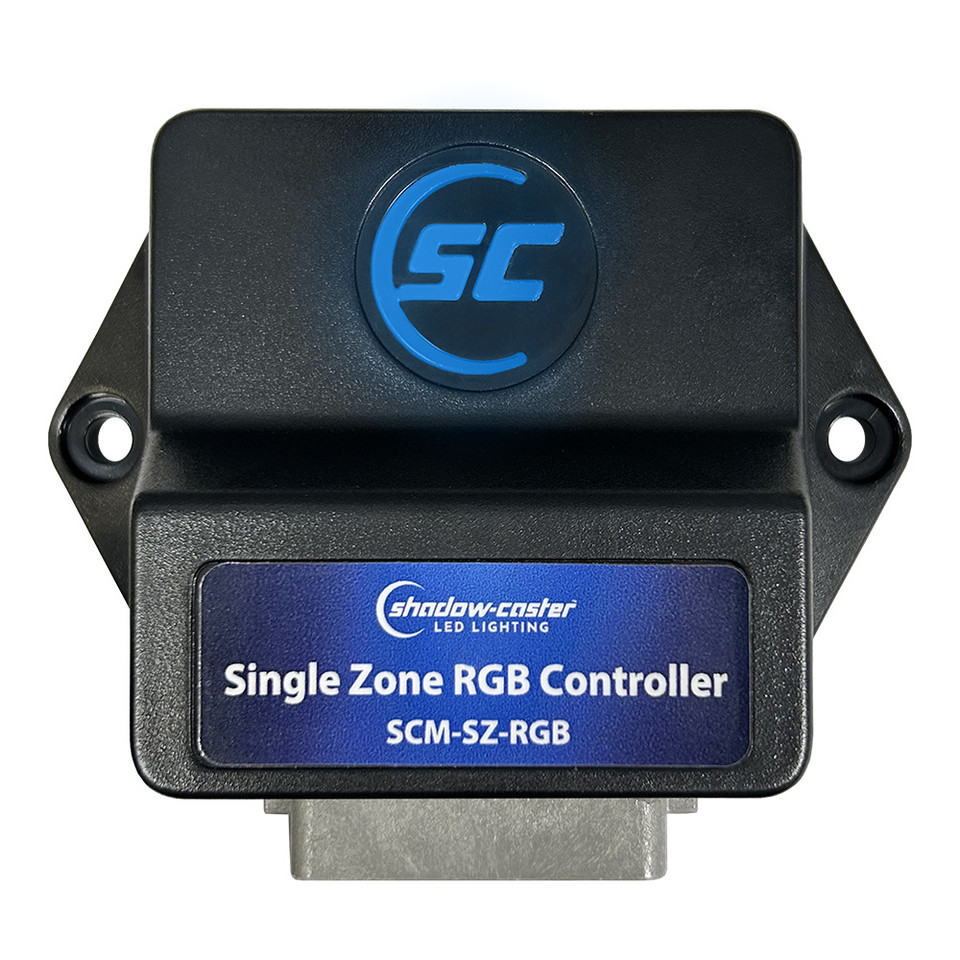

Single Zone RGB(W) Controller
The Shadow-Caster® Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated from a standard push-button switch to set color and brightness.
The Single Zone Controller also has a built-in Shadow-NET® interface that allows the controller to synchronize color and brightness control with other Shadow-NET® devices, for example, to make Shadow-Caster® underwater lights match the color of interior RGBW lighting.
Features:
- Shadow-NET® enabled for expansion and use with other Shadow-Caster® products
- The Backlit SC logo indicates brightness and color, or it flashes red if a fault is detected
- Supports color rotation, single-color fade, and multi-color fade
- Auto-detect for the white channel
- Integrated overcurrent protection
- Operate from an off/on/momentary switch or a single momentary push button
- Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on a boat
Specifications:
- Current Draw: 10A max
- Hosing & Connector IP Rating: IP67
- Voltage: 12V/24V operation compatible
- Dimensions: 3.5” x 2.9” x 1.2” (88 x 72.4 x 30.6mm)
